2 Channel MOSFET Module

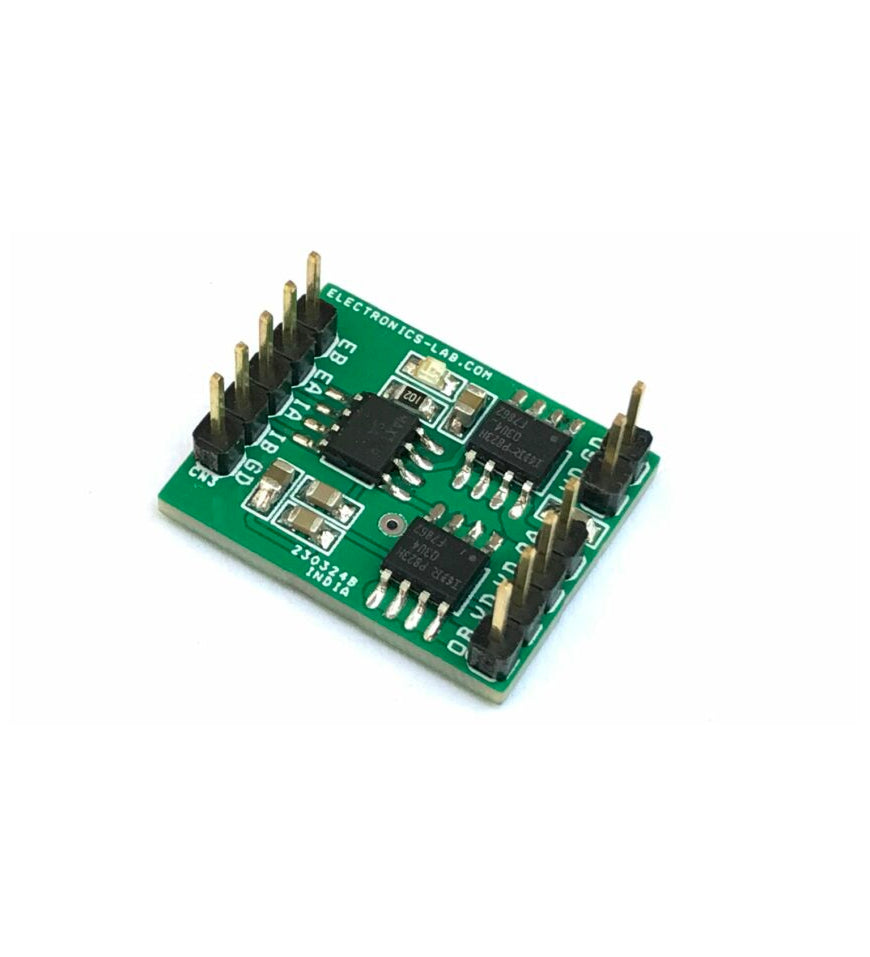

This is a low profile and small size two-channel MOSFET board that can drive loads up to 2 x 3A. The Power Supply is 5V to 14V DC. Inputs and input Enable are TTL-level signals. The Output is by default enabled and an active high signal disables the output. Parallel Operation of Dual Outputs for Larger Driver Output Current is possible. The Circuit can drive a high-speed PWM signal as well as ON/OFF signal.
Features
- +5V to +14V Single Power-Supply Range
- Load up to 3A, each Channel
- IN-A, IN-B, ENB-A, ENB-B, TTL Level Inputs
- Dual Drivers with Enable Inputs
- Low 12ns Propagation Delay
- 6ns Typical Rise and 5ns Typical Fall Times with 1nF Load
- Matched Delays Between Channels
- Parallel Operation of Dual Outputs for Larger Driver Output Current
- TTL or HNM Logic-Level Inputs with Hysteresis for Noise Immunity
- Low Input Capacitance: 10pF (typ)
- Thermal Shutdown Protection
- PCB Dimensions 23.50 x 18.73 mm
Share
This is a low profile and small size two-channel MOSFET board that can drive loads up to 2 x 3A. The Power Supply is 5V to 14V DC. Inputs and input Enable are TTL-level signals. The Output is by default enabled and an active high signal disables the output. Parallel Operation of Dual Outputs for Larger Driver Output Current is possible. The Circuit can drive a high-speed PWM signal as well as ON/OFF signal.
Features
- +5V to +14V Single Power-Supply Range
- Load up to 3A, each Channel
- IN-A, IN-B, ENB-A, ENB-B, TTL Level Inputs
- Dual Drivers with Enable Inputs
- Low 12ns Propagation Delay
- 6ns Typical Rise and 5ns Typical Fall Times with 1nF Load
- Matched Delays Between Channels
- Parallel Operation of Dual Outputs for Larger Driver Output Current
- TTL or HNM Logic-Level Inputs with Hysteresis for Noise Immunity
- Low Input Capacitance: 10pF (typ)
- Thermal Shutdown Protection
- PCB Dimensions 23.50 x 18.73 mm
