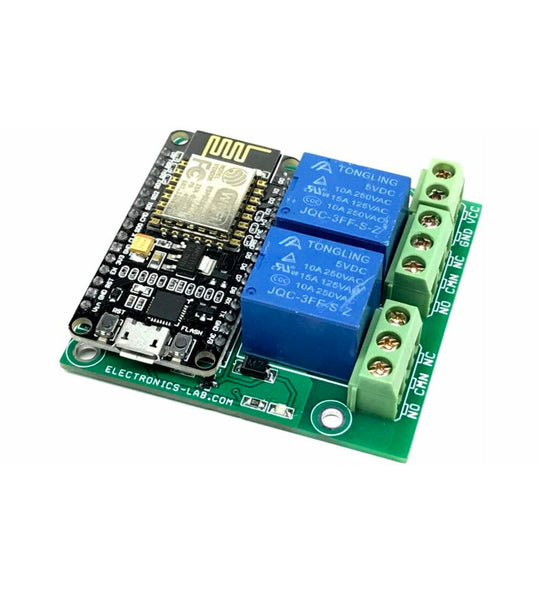

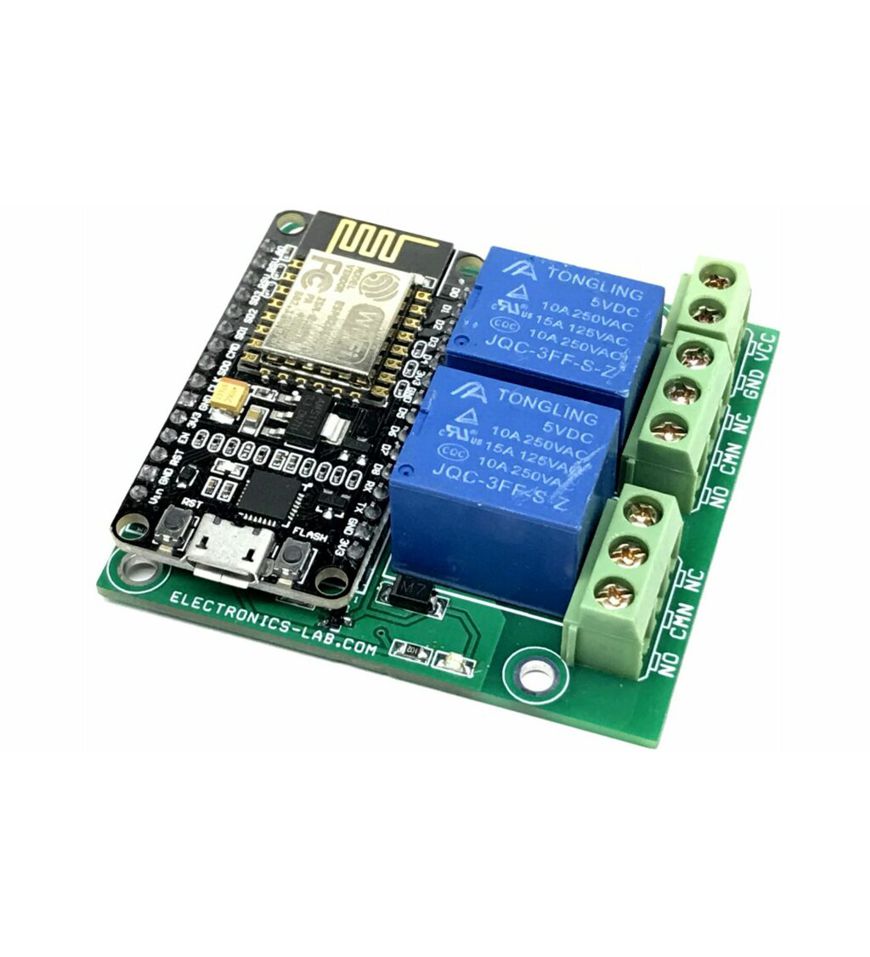

2 Channel Wi-Fi Relay Module Using ESP8266 Node MCU

The project described here is an ESP8266 Node MCU Two Channel Relay Module. This board enables users to control 2 x relays remotely. The 2 channels can be controlled remotely using a webserver/WiFi connection. The project works with 5VDC. Two LEDs indicate relay operation. Screw terminals help user to connect devices and power the supply. Relay output has 3 contacts normally closed, normally open, and common. Relay can drive a load up to 10A/250VAC or 10A/30VDC. It can be used in applications such as IoT and smart Home/Home automation.

The board can be connected to a server through a TCP Client and also can be controlled by HTTP. With this module, users can upload firmware and can create a versatile IoT project. It is suitable for your smart home and IoT project with network control.

Hardware Details

ESP8266 MCUNODE (WiFi)
2 x 5V Relay
2 x LEDs Relay Operations
2 x 3 Pin Screw Terminals (Relay Output Normally Open, Normally Closed and Common Connections)
2 Pin Screw Terminal Power Input 5V DC
2 x BJT (Transistors) drive relays
2 x Flyback diodes
ESP8266 GPIO15 Connected to Relay 1
ESP8266 GPIO13 Connected to Relay 2

Features

Power Supply 5V DC
Current 100mA (when Relays are on)
2 x Relay LED
4 x 3MM Mounting Holes
Screw Terminal for Easy Connections
PCB Dimensions 57.63 x 53.98 mm

Connections and Other Details

CN1 Power Supply: Pin 1 = 5V DC, Pin 2 = GND
CN2: Pin 1 Normally Closed, Pin 2 = Common, Pin 3 = Normally Open (Relay 1 Contacts)
CN3: Pin 1 Normally Closed, Pin 2 = Common, Pin 3 = Normally Open (Relay 2 Contacts)
D2: LED for Relay 1
D4: LED for Relay 2
