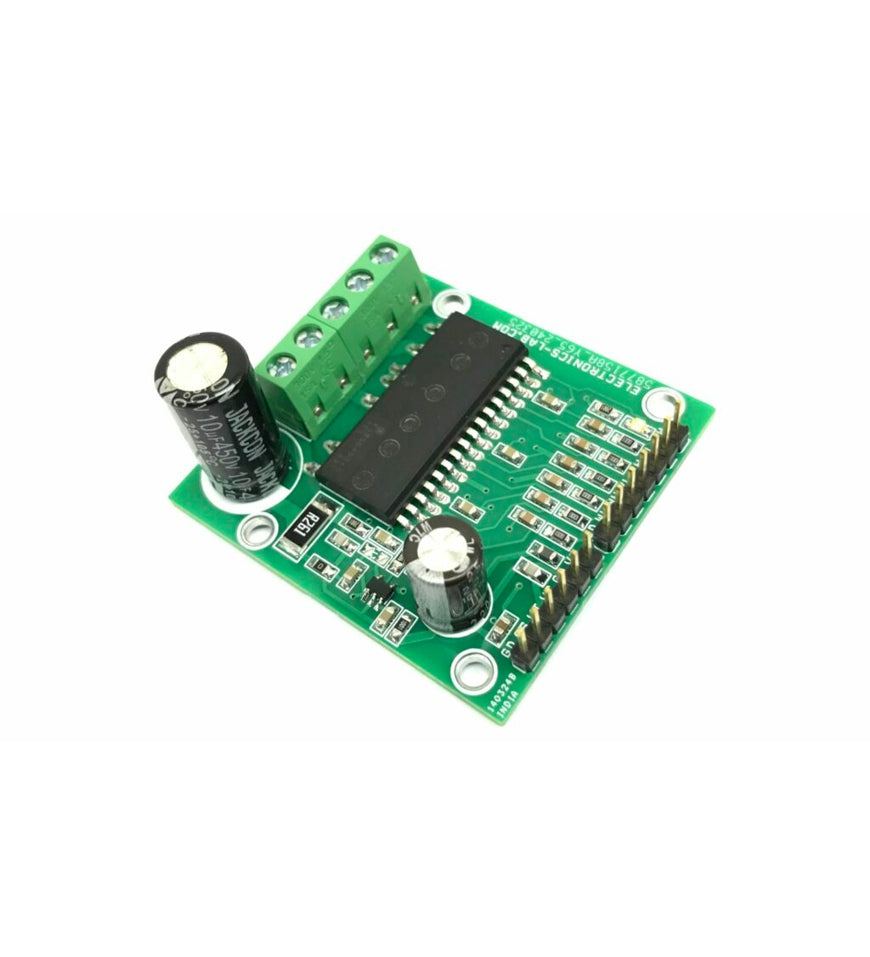

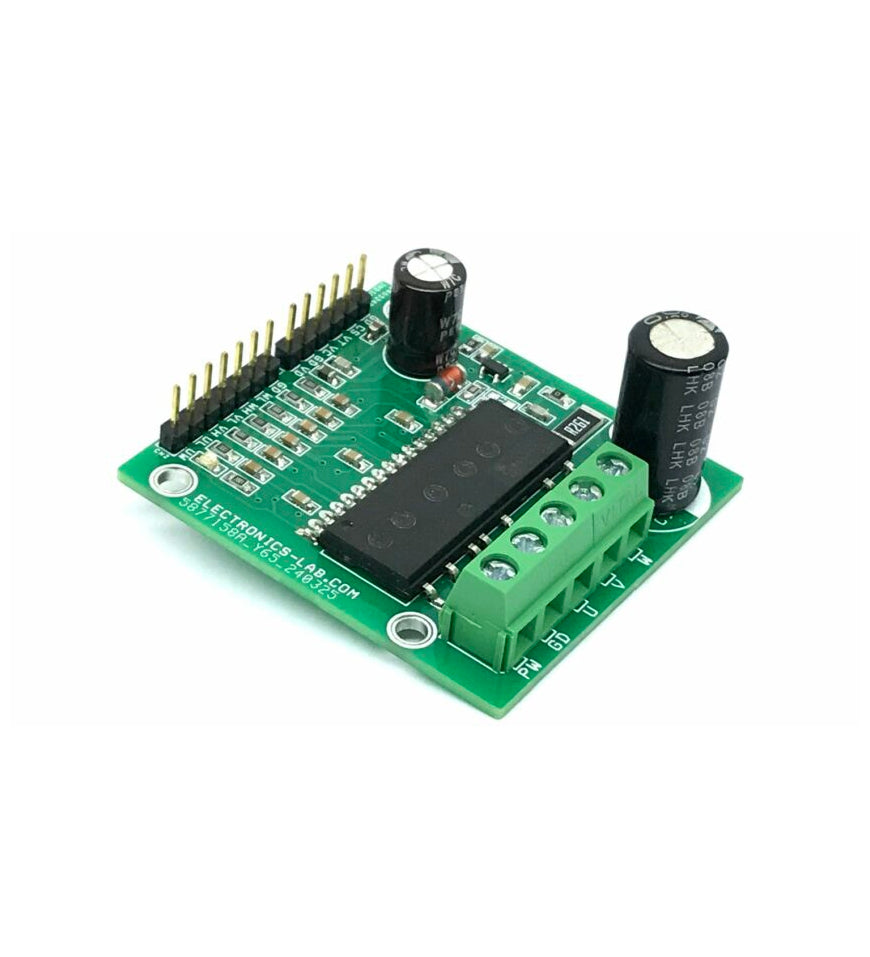

3 Phase Inverter for Low Power AC Motor

This is a 3-Phase Inverter Driver project designed for Low Power AC Motor. The FSB50450AS chip is the heart of the project. A compact inverter project is ideal for small power motors such as fans and pumps. An H-bridge configuration can also be created for low-current high-voltage brushed DC motors. The Inverter project supports loads up to 1.5A. The DC power supply voltage is up to 400V DC. The project operates with 6 x PWM signals. Parameters for bootstrap circuit elements are dependent on the PWM algorithm. For 15 kHz switching frequency, Bootstrap capacitors C1, C2, and C3 value is 1uF. Resistor R1, R2, R3, R4, R6, R7 and capacitor C4, C5, C6, C7, C8, C9 prevent improper signal due to surge-noise. Over-current or fault detection circuit is created using comparator CN5 – LMV7239 and shunt resistor R5. The output of LMV7239 is normally high and goes low when an over-current condition occurs. So, the CS pin goes low when the current goes above the threshold level. ATS pin is provided to monitor the temperature of the IPM chip. Heatsink is a must for this IPM module. Adhesive material with high thermal conductivity, such as Loctite 384, can be used to fix the heat sink on the top surface of the chip. Refer to the heatsink installation diagram.

Operation Truth Table

• HIN 0, LIN 0 = Output Z Both MOSFET Off
• HIN 0, LIN 1 = Output 0 Low Side MOSFET On
• HIN 1, LIN 0 = Output VDC High Side MOSFET On
• HIN 1, LIN 1 = Forbidden Shoot Through

Features

• Load Power Supply Up to 400V DC
• Load Current Continues 1.5A
• Logic Supply 15V DC
• Power Supply for Over Current Circuit (Comparator CN5) 5V DC
• One Board Power LED for Logic Supply
• Shunt Based Over Current Output
• V_TS Pin for Temperature Monitor (Temperature sensing built in HVIC)
• HVIC for gate driving and under-voltage protection
• Active-High interface, can work with 3.3V/5V logic (PWM Signals)
• Optimized for low electromagnetic interference
• Isolation voltage rating of 1500Vrms for 1min

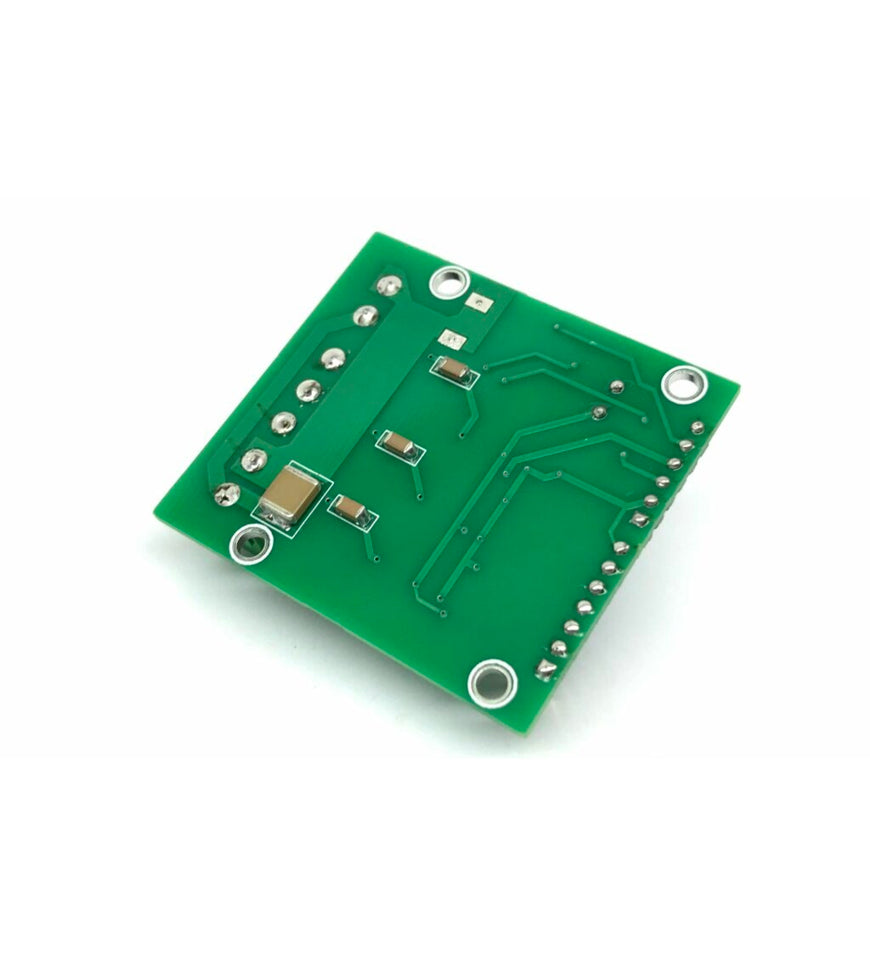

• PCB Dimensions 50.17 x 45.72 mm

Signal Input Pins

• Pins: IN(UL), IN(VL), IN(WL), IN(UH), IN(VH), IN(WH)
• These pins control the operation of the MOSFETs.
• These pins are activated by voltage input signals. The terminals are internally connected to the Schmitt trigger circuit.
• The signal logic of these pins is active HIGH; the MOSFET turns ON when sufficient logic voltage is applied to the associated input pin.
• The wiring of each input needs to be short to protect the module against noise influences.
• An RC filter is used to mitigate signal oscillations or any noise that traces of input signals may pick up.
