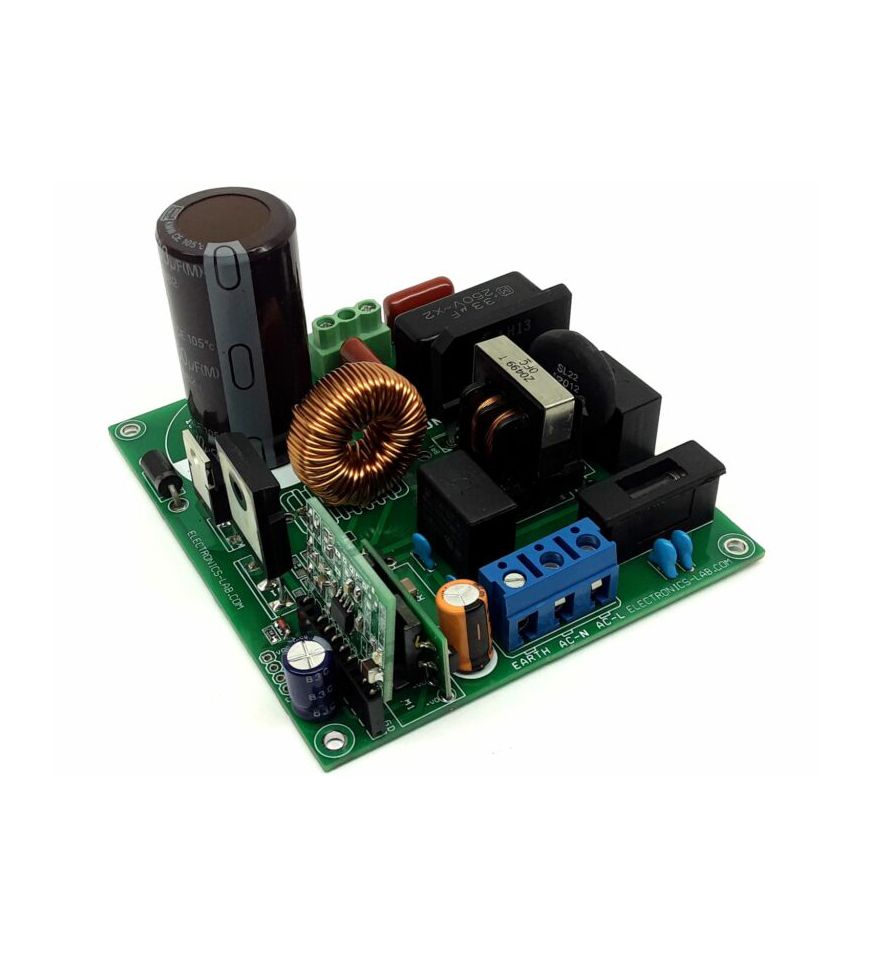

350W Power Factor Boost Converter for Inverter-Fed BLDC and PMSM Motors
This 350W power factor boost converter is designed for inverter-fed BLDC/PMSM motor appliances, A/C units, Refrigerators, and industrial power supplies. The circuit is a continuous-conduction-mode boost converter implemented using a UCC28180 PFC controller module which provides all the necessary built-in protections. It’s a robust output supply protected for output cover current, output over-voltage, and output under voltage conditions. The converter has two parts, the main power board and the UCC28180 PFC controller/Breakout board. PFC boost converter provides 380VDC regulated output at 0.9A load current. The PFC converter accommodates an input voltage range of 85VAC to 265 VAC and uses average current mode control at a fixed programmable switching frequency of 120Khz.
Features
- Output 380V DC
- Output Load Current 0.9A
- Full Load Efficiency 94%
- Input AC Range 85V to 265V AC
- Input Frequency 47 to 63 Hz
- No Load Input Current 70mA
- Operating Frequency 120Khz
- Average Current Mode PWM Control
- No AC Line Sensing Needed
- Soft Over Current and Cycle-by-Cycle Peak Current Limiting
- VCC Under Voltage Lockout with Low Start-Up Current
- Voltage Regulation Open Loop Detection
- Output Over-Voltage Protection with Hysteresis Recovery
- Soft Start
- PCB Dimensions 97.79 x 89.22 mm
- 4 x 3mm Mounting Holes
