8 Channel RF Remote Transmitter with Holtek and Serial Protocol

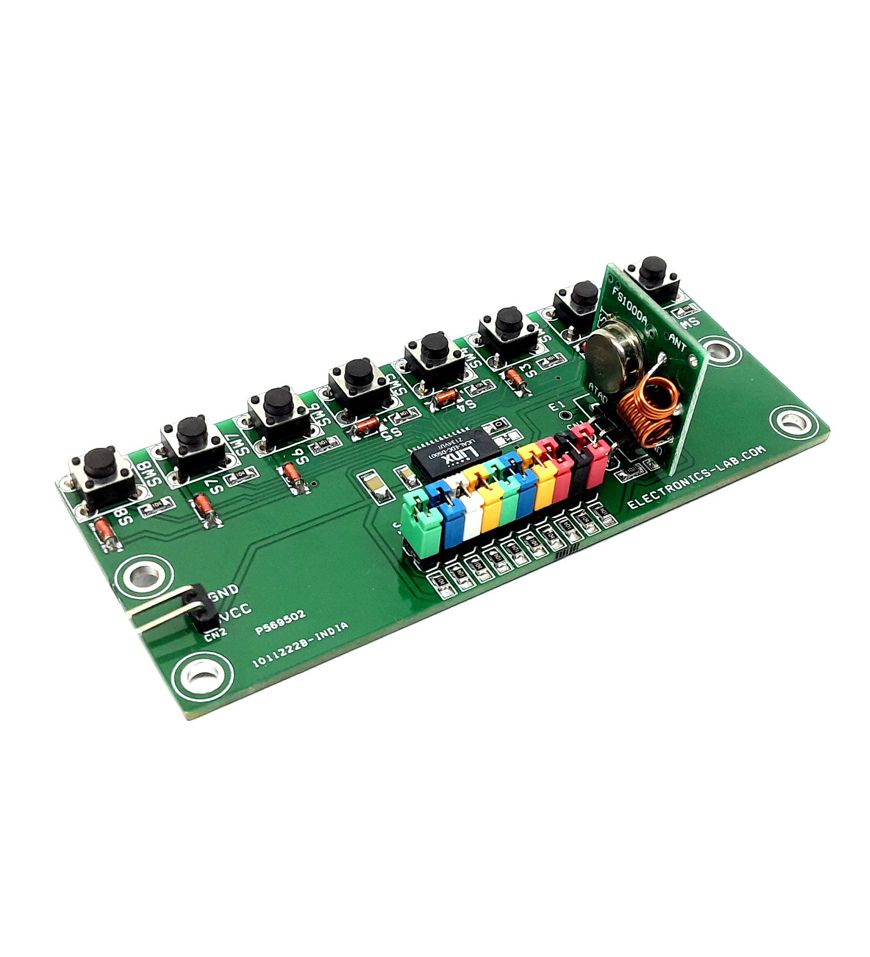

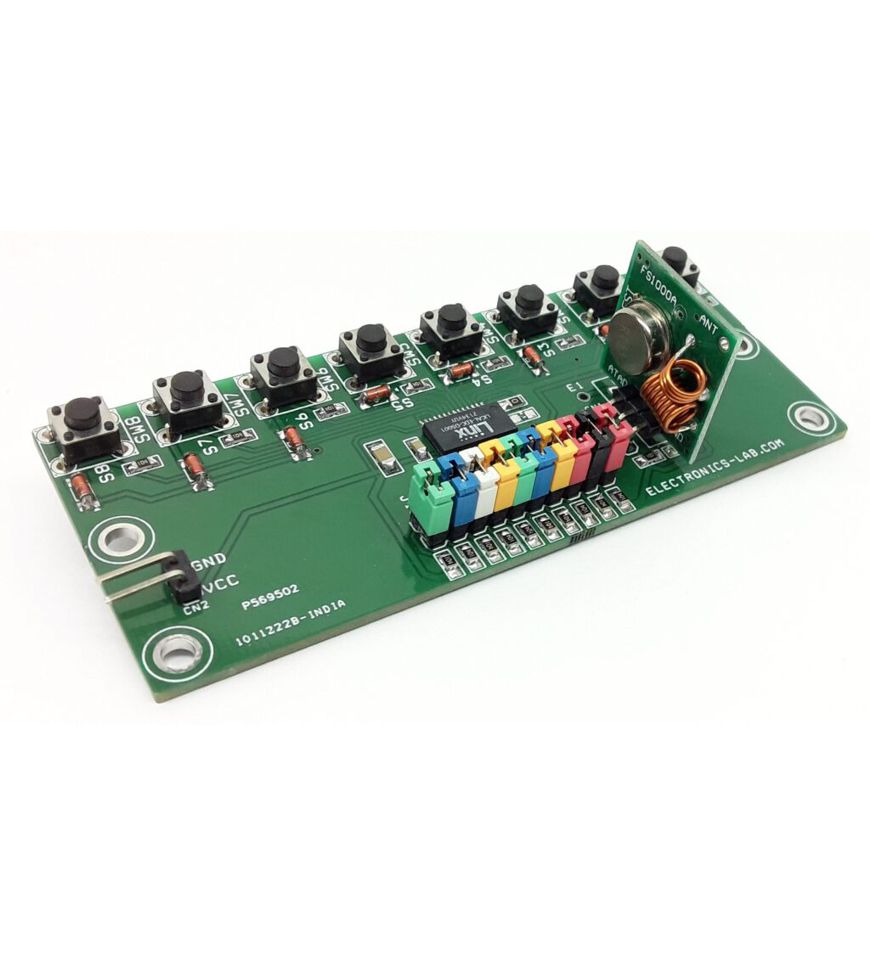

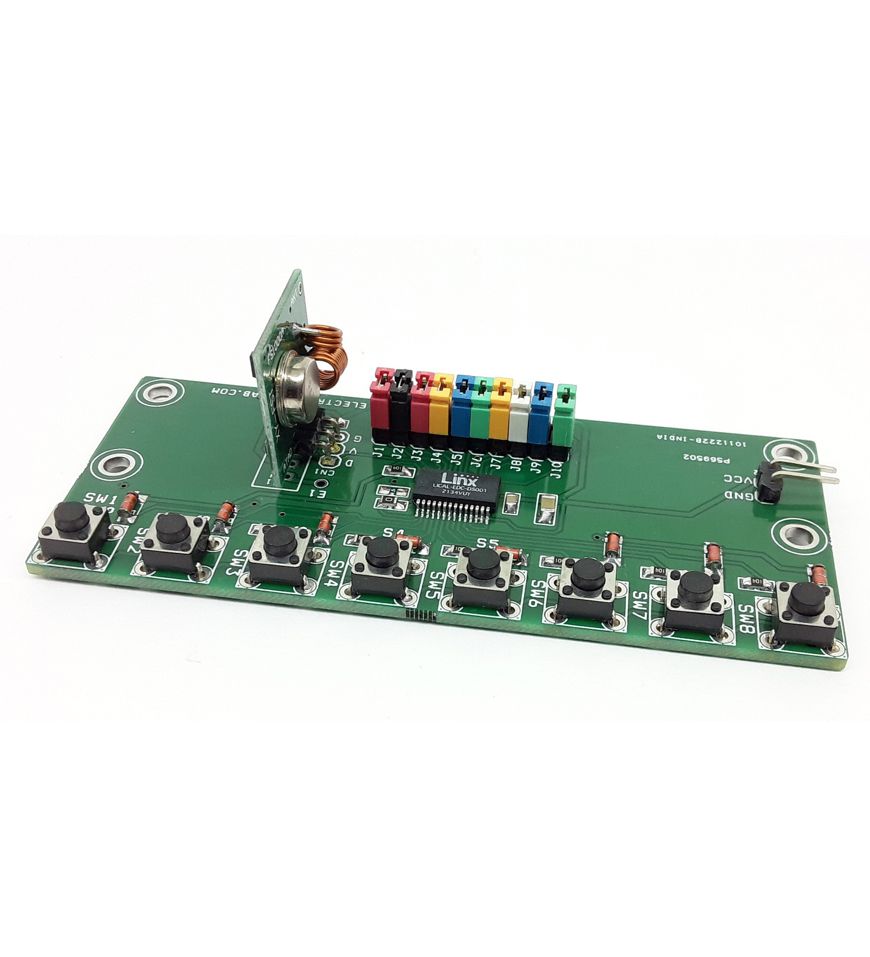

The project described here is an 8 Channel RF remote transmitter This transmitter is built using LICAL-EDC-DS001 chip from LINX. The project consists of the Encoder/Decoder chip, a 433Mhz RF module as a wireless link, 8 x tactile switches for operations, 10 x jumpers to set the transmitter address.
The project described here is an 8 Channel RF remote transmitter This transmitter is built using LICAL-EDC-DS001 chip from LINX. The project consists of the Encoder/Decoder chip, a 433Mhz RF module as a wireless link, 8 x tactile switches for operations, 10 x jumpers to set the transmitter address. This DS series decoder/encoder chip is ideal for remote control applications. It is able to transmit the status of up to 8 buttons across a wireless link. Addressing is accomplished by the logic state of 10 Jumpers J1 to J10.
Features
- Supply 5V DC
- 10 Address Lines Selected through Jumpers J1 to J10
- 8 X Tactile Switches (8 Data Lines)
- On Board Power LED
- PCB Dimensions 90.81 x 38.10 mm
- 4 x 2.5MM Mounting Holes
Share
The project described here is an 8 Channel RF remote transmitter This transmitter is built using LICAL-EDC-DS001 chip from LINX. The project consists of the Encoder/Decoder chip, a 433Mhz RF module as a wireless link, 8 x tactile switches for operations, 10 x jumpers to set the transmitter address.
The project described here is an 8 Channel RF remote transmitter This transmitter is built using LICAL-EDC-DS001 chip from LINX. The project consists of the Encoder/Decoder chip, a 433Mhz RF module as a wireless link, 8 x tactile switches for operations, 10 x jumpers to set the transmitter address. This DS series decoder/encoder chip is ideal for remote control applications. It is able to transmit the status of up to 8 buttons across a wireless link. Addressing is accomplished by the logic state of 10 Jumpers J1 to J10.
Features
- Supply 5V DC
- 10 Address Lines Selected through Jumpers J1 to J10
- 8 X Tactile Switches (8 Data Lines)
- On Board Power LED
- PCB Dimensions 90.81 x 38.10 mm
- 4 x 2.5MM Mounting Holes
