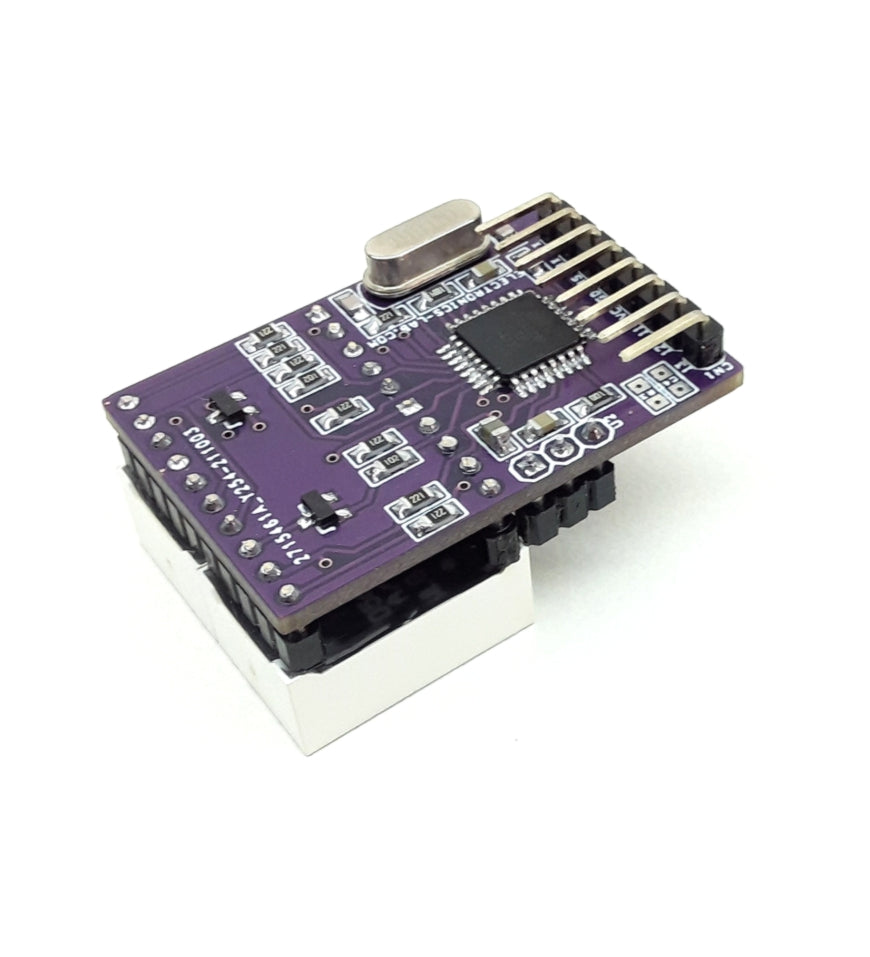

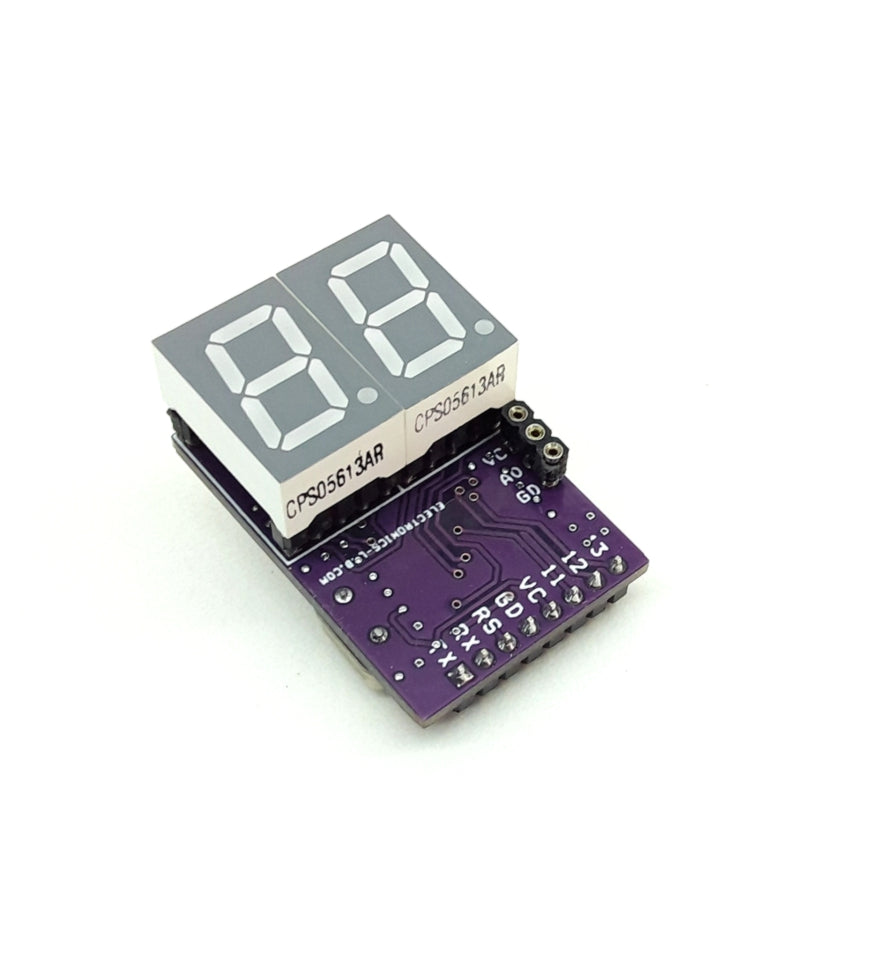

Arduino 2-Digit 0.5″ Common Cathode 7 Segment Display Module

This is an Arduino compatible board for creating 2 Digit Display projects. The circuit operates with 5V DC, Connector CN1 is provided for bootloader programming and Arduino firmware upload. A new Atmega328 chip requires a bootloader and Arduino firmware programming, Connector CN1 helps you with both functions. Follow the link below to learn more about programming using Arduino. Arduino code is available as a download to test the board.

Arduino Compatible Hardware

• Atmega328 microcontroller
• 2 Digit 0.5 Inch 7 Segment Display, Common Cathode
• 2 x BC847 Transistors to drive Display Common Cathode for Multiplexing
• CN1: Arduino Programming and Boot-Loader Connector
• U2: 3 Pin Connector to Connect LM35 Temperature Sensor or Analog Input
• Current Limiting Resistors for 7 segment display and other components

Applications

• 2 Digit Counter
• 2 Digit Timer
• 2 Digit Thermometer
• Voltmeter
• Current Meter
• Sensor Value Display
• 2 Digit Score
• Digital Dice

Arduino Pins

• Digital Pin D10 Display 1 Common Cathode
• Digital Pin D11 Display 2 Common Cathode
• Digital Pin D2 Display Segment A
• Digital Pin D3 Display Segment B
• Digital Pin D4 Display Segment C
• Digital Pin D5 Display Segment D
• Digital Pin D6 Display Segment E
• Digital Pin D7 Display Segment F
• Digital Pin D8 Display Segment G
• Digital Pin D9 Display Segment DP
• DIGITAL INPUTS D13, D12, D11, TX, RX
• ANALOG PIN A0 LM35 TEMPERATURE SENSOR OR ANALOG INPUT
• PROGRAMING D13, D12, D11, TX, RX, RESET

Features

• Supply 5V DC can be optimized for 3.3V Operations
• LM35 Temperature Sensor, Analog Input A0
• Compact Hardware
• PCB Dimensions 37.78  x 26.04 mm
