Arduino Compatible OLED Board with 4 Channel 16-Bit ADC

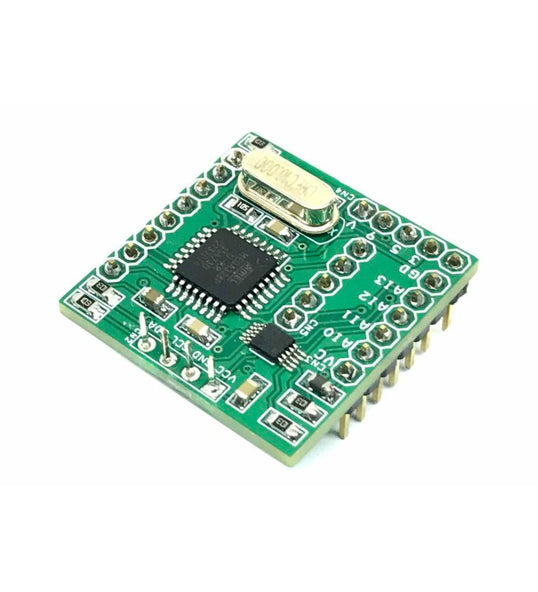

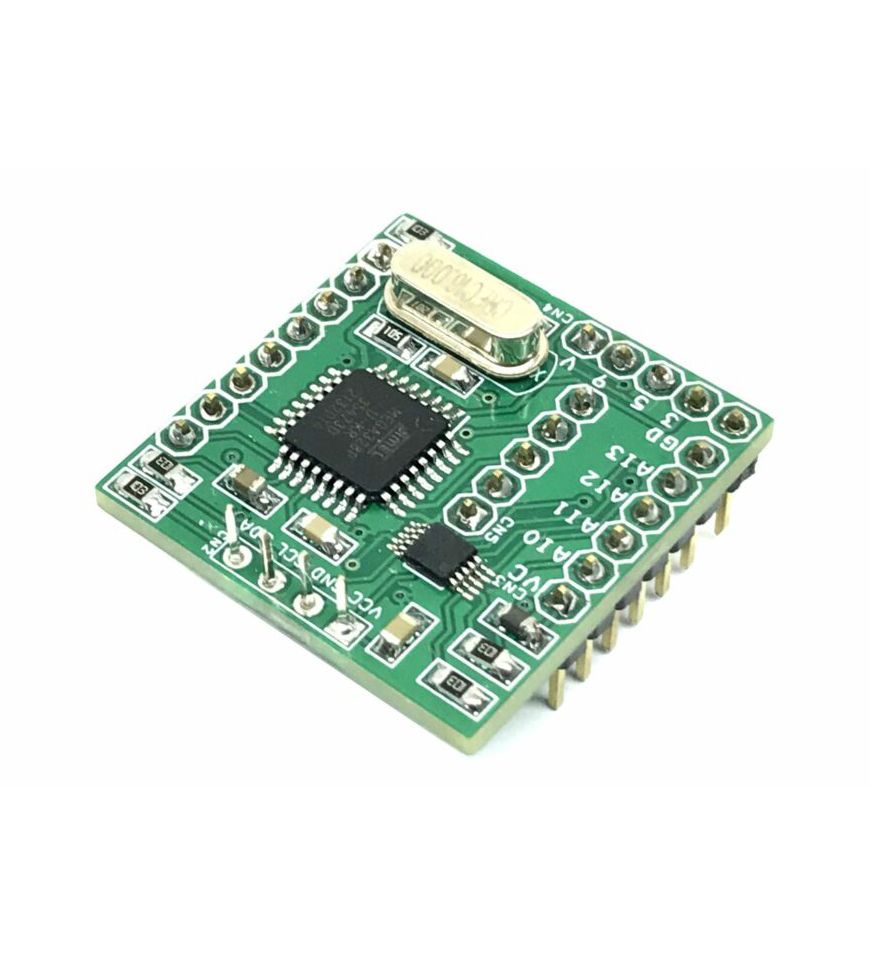

This board consists of Arduino-compatible hardware which includes an OLED display, ADS1115 4-Channel 16Bit ADC, Arduino-compatible Microcontroller ATMEGA328, a connector for Arduino Programming, a connector for 4 Channel Analog input, and a connector for a couple of I/O lines. Operating supply 5V DC.
The ADS1115 device is a precision, low-power, 16-bit, I2C-compatible, analog-to-digital converter (ADCs). It incorporates a low-drift voltage reference and an oscillator. The ADS1115 also incorporates a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS1115 well-suited for power- and space-constrained, sensor measurement applications.
The ADS1115 performs conversions at data rates of up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1115 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in ADS1115 for under and overvoltage detection.
The ADS1115 operates in either continuous-conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.
Features
- Supply 5V DC
- Supports 0.96Inch OLED Display with I2C
- 4 Channel ADC (2 Differential Inputs or 4 Single-Ended Inputs
- Header Connector for Arduino Programming
- Header Connector for 4 Channel Analog Inputs and Power Supply
- Header Connector for Extra I/O Lines
- Compact PCB Same Size as OLED Display
- PCB Dimensions 27.62 x 26.83 mm

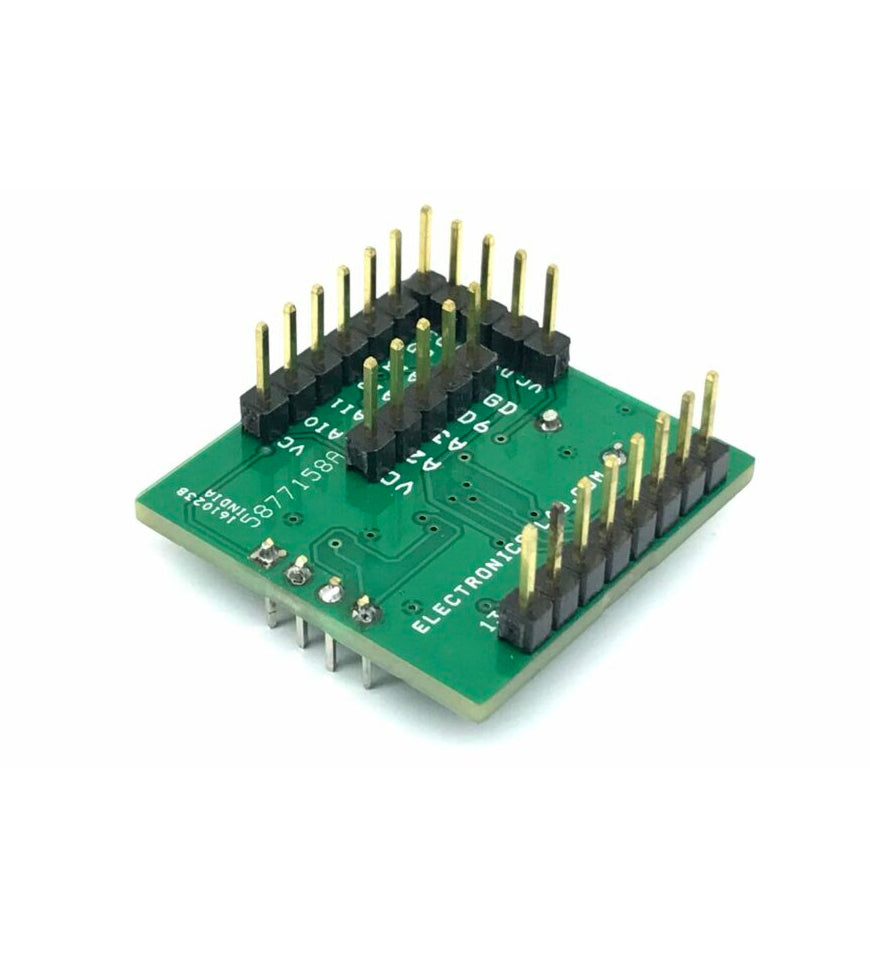

Connections
- CN1: Pin 1 TX, Pin 2 RX, Pin 3 Reset, Pin 4 GND, Pin 5 VCC, Pin 6 D11, Pin 7 D12, Pin 8 D13
- CN2: Pin 1 VCC, Pin 2 GND, Pin 3 SLA, Pin 4 SDA (OLED Display)
- CN3: Pin 1 VCC, Pin 2 Analog Input 0, Pin 3 Analog Input 1, Pin 4 Analog Input 2, Pin 5 Analog Input 3, Pin 6 GND
- CN4: Pin 1 VCC, Pin 2 D9, Pin 3 D5, Pin 4 D3, Pin 5 GND
- CN5: Pin 1 VCC, Pin 2 A2, Pin 3 A3, Pin 4 D6 Pin 5 GND
