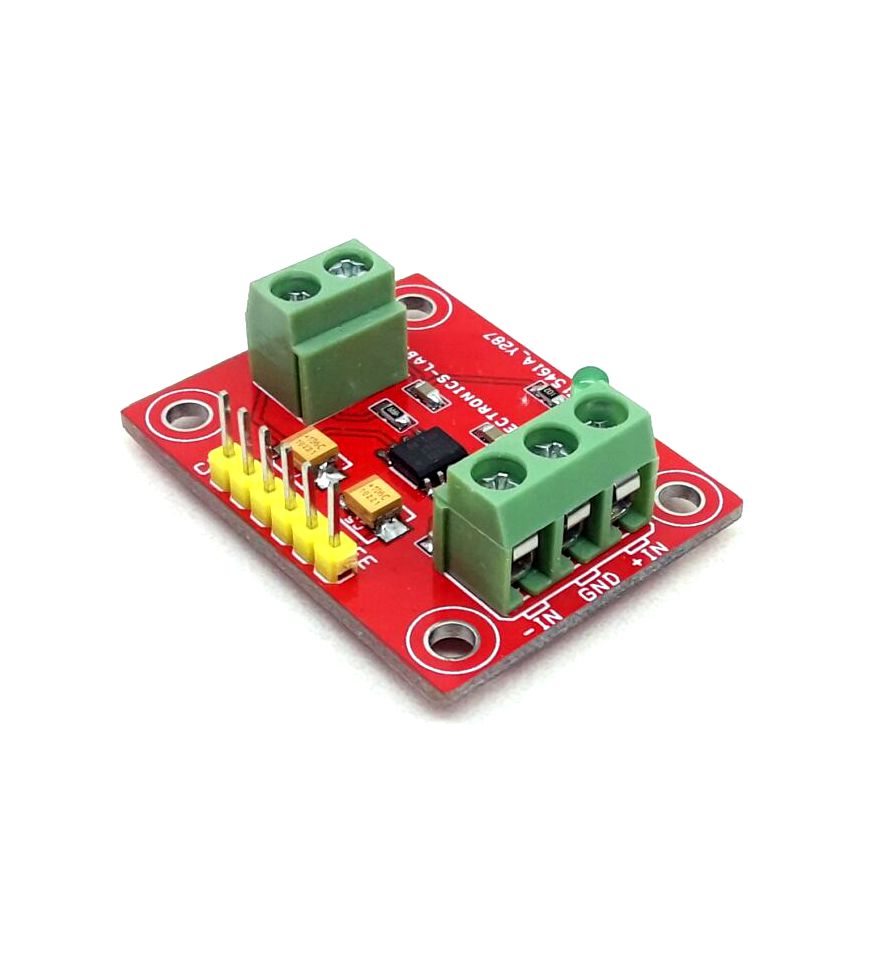

Audio Line Receiver using INA134
The project described here is a differential line receiver consisting of high-performance INA134 OPAMPs with on-chip precision resistors. The project is fully specified for high-performance audio applications and has excellent AC specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/µs), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The INA134 on-chip resistors are laser trimmed for accurate gain and optimum common-mode rejection. Furthermore, excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. Operating power supply ±4V to ±18V (8V to 36V total supply).
This project is used in combination with the DRV135 Audio-Balanced Line Driver as the transmitter. Together they offer a complete solution for transmitting analog audio signals without degradation over a long distance.
Features
- Power Supply +/-12V (SUPPLY RANGE: ±4V to ±18V)
- Low Distrortion: 0.0005% at f = 1kHz
- High Slew Rate: 14V/µs
- Fast Settling Time: 3µs to 0.01%
- Low Quiescent Current: 2.9mA max
- High CMRR: 90dB
- Fixed Gain= 0dB (1V/V)
- PCB Dimensions 39.37 x 360.48 mm
Applications
- Audio Differential Line Drivers
- Audio Mix Consoles
- Distribution Amplifier
- Digital Effects Processors
- Hi-Fi Equipment’s
Share
The project described here is a differential line receiver consisting of high-performance INA134 OPAMPs with on-chip precision resistors. The project is fully specified for high-performance audio applications and has excellent AC specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/µs), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The INA134 on-chip resistors are laser trimmed for accurate gain and optimum common-mode rejection. Furthermore, excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. Operating power supply ±4V to ±18V (8V to 36V total supply).
This project is used in combination with the DRV135 Audio-Balanced Line Driver as the transmitter. Together they offer a complete solution for transmitting analog audio signals without degradation over a long distance.
Features
- Power Supply +/-12V (SUPPLY RANGE: ±4V to ±18V)
- Low Distrortion: 0.0005% at f = 1kHz
- High Slew Rate: 14V/µs
- Fast Settling Time: 3µs to 0.01%
- Low Quiescent Current: 2.9mA max
- High CMRR: 90dB
- Fixed Gain= 0dB (1V/V)
- PCB Dimensions 39.37 x 360.48 mm
Applications
- Audio Differential Line Drivers
- Audio Mix Consoles
- Distribution Amplifier
- Digital Effects Processors
- Hi-Fi Equipment’s
