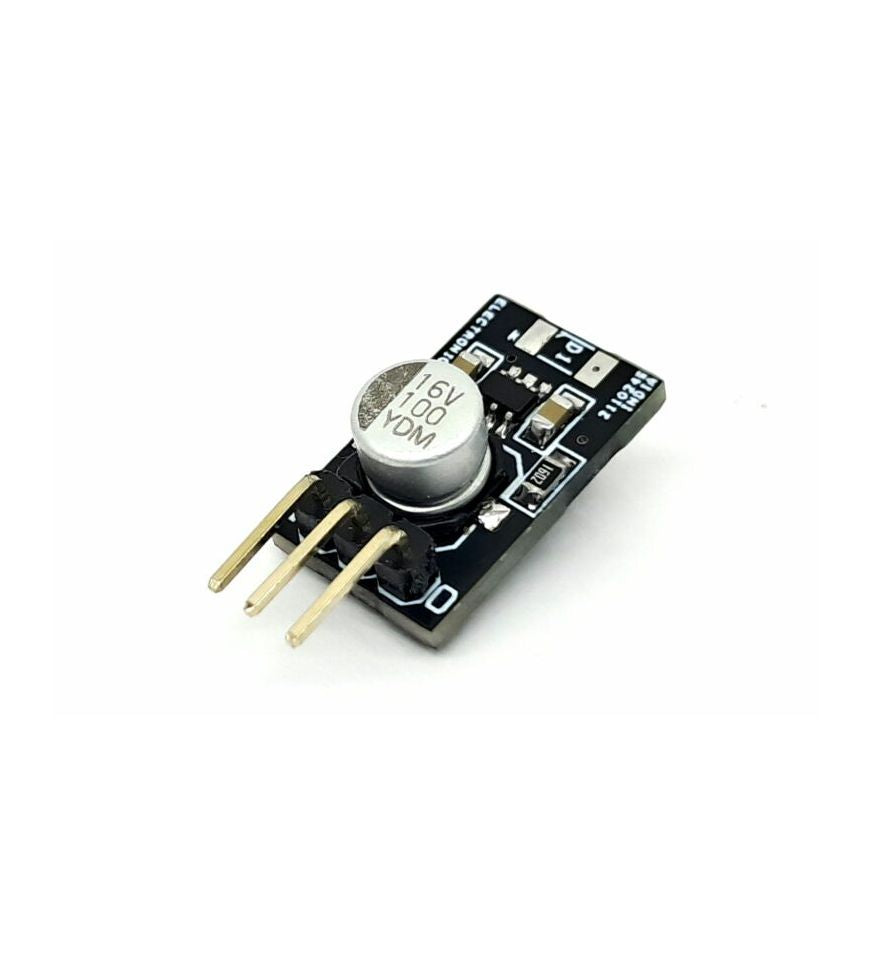

Compact DC-DC Converter with Input 24V and 5V@1.5A Output

We are introducing a compact DC-DC converter that delivers a 5V output with a load current of up to 1.5A, powered by an input supply of 24V to 26V DC. This innovative project boasts key features such as soft start, thermal shutdown, and overcurrent protection. Built using the MP2345 TSOT23-6 DC-DC Converter, this mini board offers a significant advantage over traditional LDOs like LM7805, occupying a much smaller area while providing more power and generating minimal heat.

Features

Supply 24V-26V
Output 5V DC
Load Current 1.5A
3 Pin Header Connector for Input and Output (GND Common)
Internal Power-Save Mode for Light Load
600Khz Fixed Switching Frequency at CCM
Internal Soft Start
Over Current Protection (OCP) and Hiccup Mode
Thermal Shutdown
PCB Dimensions 17.78 x 10.64 mm

$12.00

Brand : dotfry

SKU : G121

Collection : DC-DC Converter

Availability : 1 In Stock Sold Out 1

HURRY ! ONLY 1 LEFT IN STOCK.

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

100% ACCURATE

SHIPPING

BIG SAVING ON

WEEKENDS

12H SUPPORT

Description
Shipping

Features

Supply 24V-26V
Output 5V DC
Load Current 1.5A
3 Pin Header Connector for Input and Output (GND Common)
Internal Power-Save Mode for Light Load
600Khz Fixed Switching Frequency at CCM
Internal Soft Start
Over Current Protection (OCP) and Hiccup Mode
Thermal Shutdown
PCB Dimensions 17.78 x 10.64 mm
