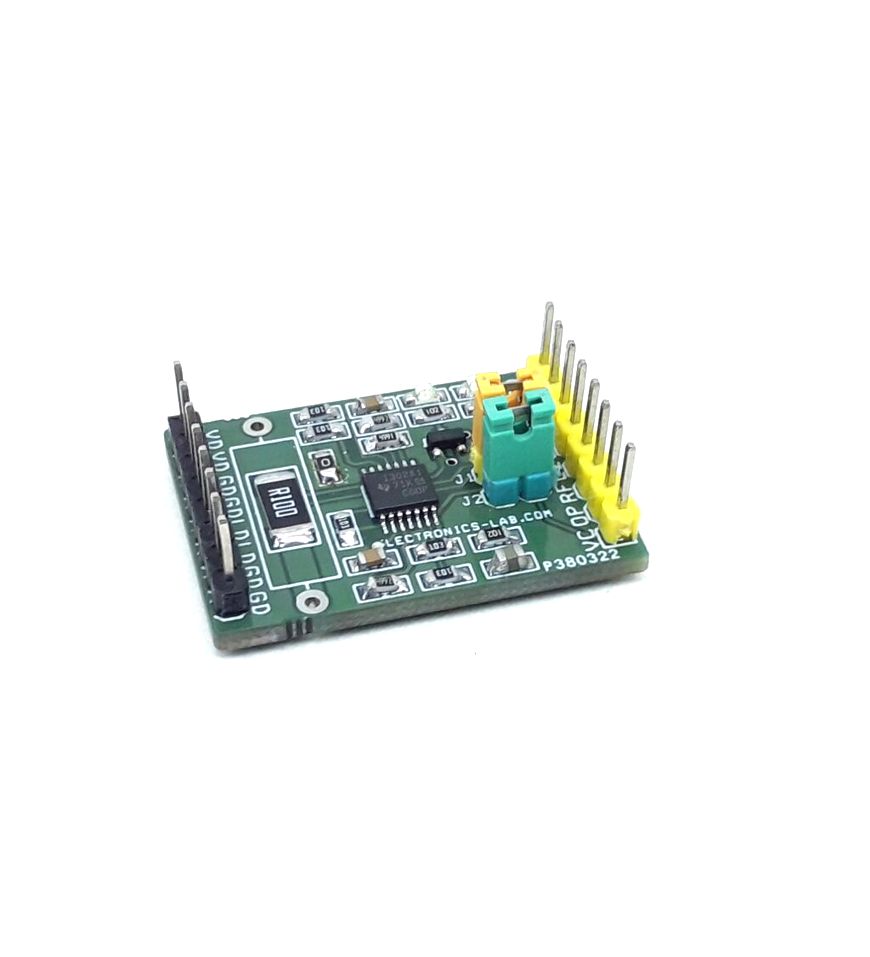

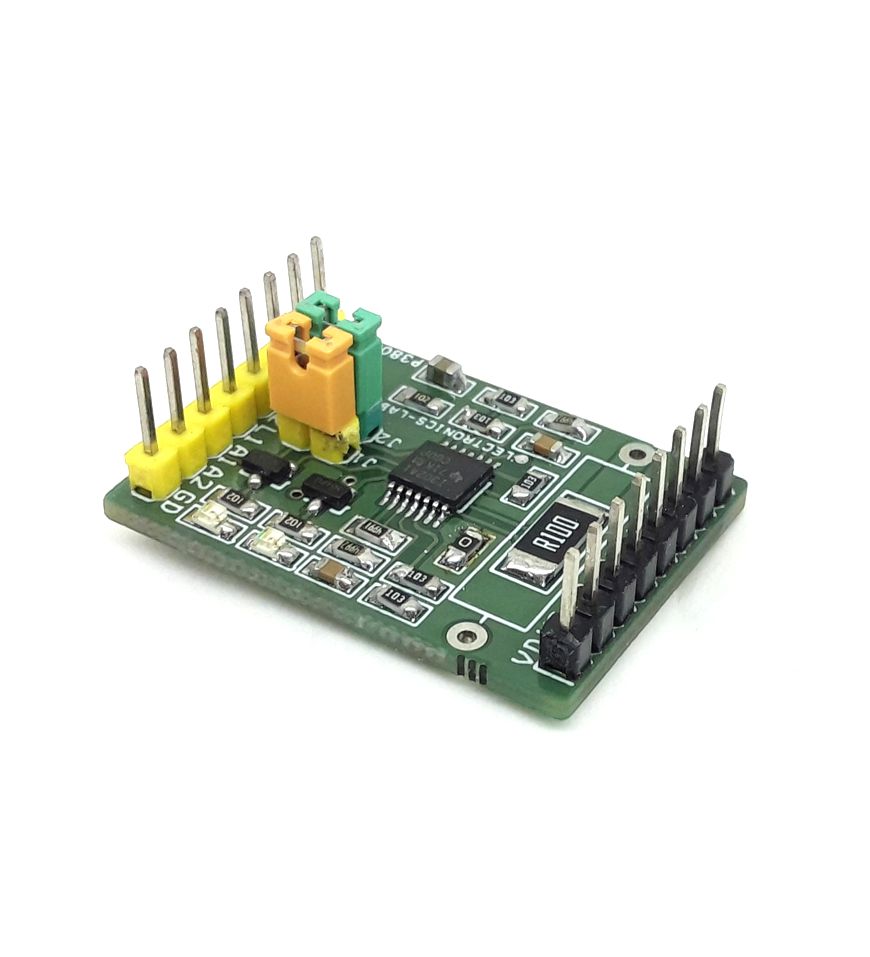

Current-Sense Amplifier with Dual Over Current Level Monitor & Alert Output
The project presented here is a high common-mode current sense amplifier with two high-speed comparators to detect out-of-range current conditions. The comparators are configured to detect and respond to dual over current conditions. These devices feature an adjustable limit threshold range for each comparator set using an external limit-setting resistor. Limit 1 Resistor is R10 and Limit 2 Resistor is R11. The board measures differential voltage signals on common-mode voltages that can vary from 0 V up to +36 V, independent of the supply.
The project is built using an INA302A1 chip which has a gain of 20V/V. The board can also be used with INA302A2 which has a gain of 50V/V or INA302A3 with a gain of 100V/V.
The open-drain alert outputs are configured to operate in either a transparent mode (output status follows the input state) or in a latched mode (alert output is cleared when the latch is reset). Jumpers J1 and J2 are provided to select this option. The alert response time for comparator 1 is under 1 µs, and the alert response for comparator 2 is set through an external capacitor ranging from 2 µs to 10 s.
- Limit 1 = R10
- Limit 2 = R11
- Current Measurements Range (By changing Shunt resistor Value) or Chip INA302A1, INA302A2, INA302A3
- Delay Time for Alert 1 and Alert 2 using resistor R7 and C3
- Bidirectional Current Sense, by applying a reference voltage to Pin 3 of CN2 or Installing Resistor R8 and R9
Features
- Supply 5V DC @ 20mA
- Input Signal Range 0 to 36V DC
- Input Current Range 0 to 2Amps
- Alert 1 and Alert 2 Dual Current Level TTL Outputs
- Alert 1 and Alert 2 Dual Current Level LED Indicator
- Delay Settings Between Alert 1 and Alert 2
- Current Sense Amplifier Voltage Output 0 to 4V
- Latch or Transparent Mode Selection Jumpers J1 and J2
- Alert2 LED On @ 200mA and Alert 1 LED On @ 2Amps Load
- PCB Dimensions 32.10 x 23.13 mm
Connector CN1
- Pin1 + DC Input
- Pin2 + DC Input
- Pin3 GND
- Pin4 GND
- Pin5 Load +
- Pin6 Load +
- Pin7 GND
- Pin8 GND
Connector CN2
- Pin1 VCC 5V Power Supply Input
- Pin2 OP Current Sense Amplifier Voltage Output 0 to 4V
- Pin3 Not in Use (Reference Voltage Input)
- Pin4 Latch 2 No Use
- Pin5 Latch 3 No Use
- Pin6 Alert1 Normally High, Goes Low When Load Current = 2Amps
- Pin7 Alert2 Normally High, Goes Low When Load Current = 200mA
