DC Motor Control Using Joystick

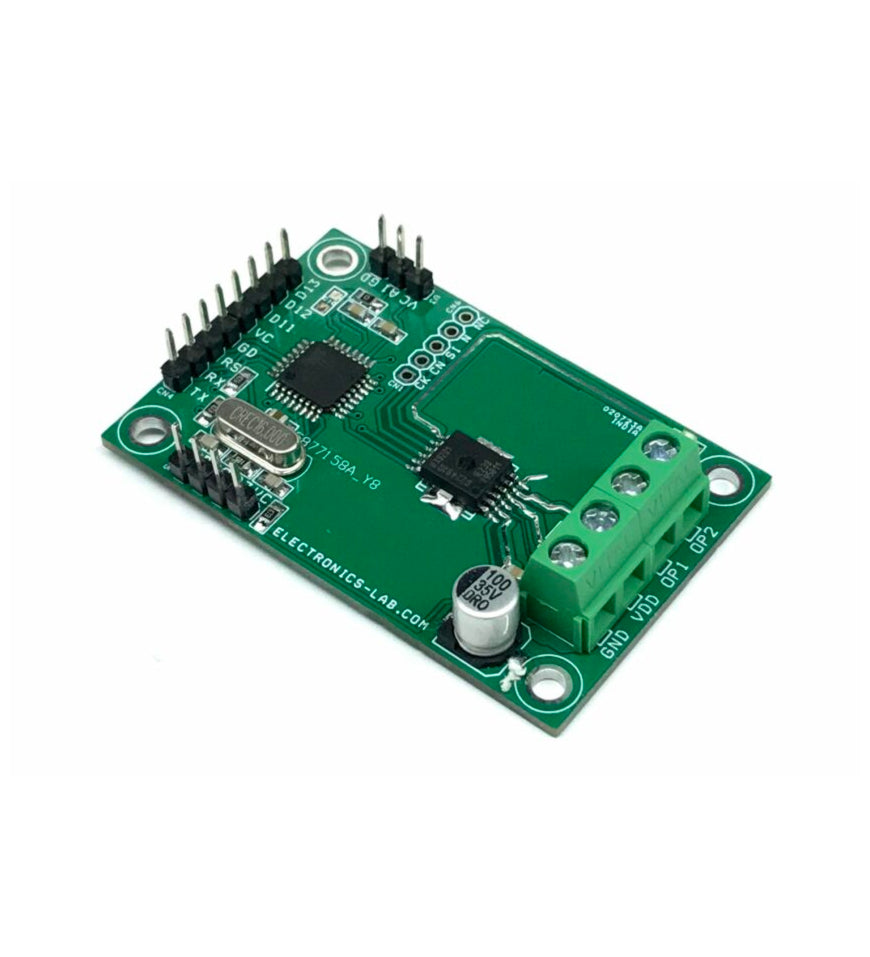

This is a compact, low-profile, and high-performance DC motor driver that provides easy control of a DC motor using a joystick. This small-size board can drive small to medium-sized brushed DC motors with up to 2.5A continuous and 6A peak currents. It is an Arduino-compatible project that helps users develop their own code and drive DC brushed motor as per application requirements. The Arduino-compatible hardware consists of an ATMEGA328 microcontroller and IFX9201 H-Bridge chip.

Applications

• Camera Pan Tilt Head
• Linear/Rotary Actuator
• Camera Slider
• Robotics
• Motorized Curtains
• Lifting Equipment
• Medical equipment/Furniture
• Camera Focus/Zoom Motor

Features

• Power Supply for the Load 8V to 30V DC (Max 36V)
• Motor Lead up to 2.5A Peak 6Amps
• Over Current Shutdown Threshold 8Amps
• Logic Supply 5.0 V
• No Heatsink Required
• PWM Frequency 975Hz
• On Board Power LED
• Screw Terminals for Motor and Power Supply Connections
• PCB Dimensions 57.47 x 37.15 mm

Various other possible applications with this hardware

• Motor Speed Control Using Potentiometer
• Motor Control with Limit Switch, a Limit switch can be connected to D7 and D8 Pin of Connector CN5
• Motor Velocity Control using Encoder, the encoder can be connected to D7/D8 of CN5

Selecting a DC motor

The project can drive small DC motors with peak currents of up to 6 A. The achievable continuous drive current is lower and depends on supply voltage, switching frequency, and cooling conditions. Realistic continuous drive currents for this project are in the range of 1 A to 2.5 A. Many motors for toys, RC models, or robotics fall in this range.

Arduino Pin

• Arduino D5 = PWM Pin of IFX9201 H-Bridge
• Arduino D6 = Direction Pin of IFX9201 H-Bridge
• Arduino D4 = Disable Pin of IFX9201 H-Bridge (High = Disable, Low = Enable)
• Arduino D5 = PWM IFX9201 H-Bridge
