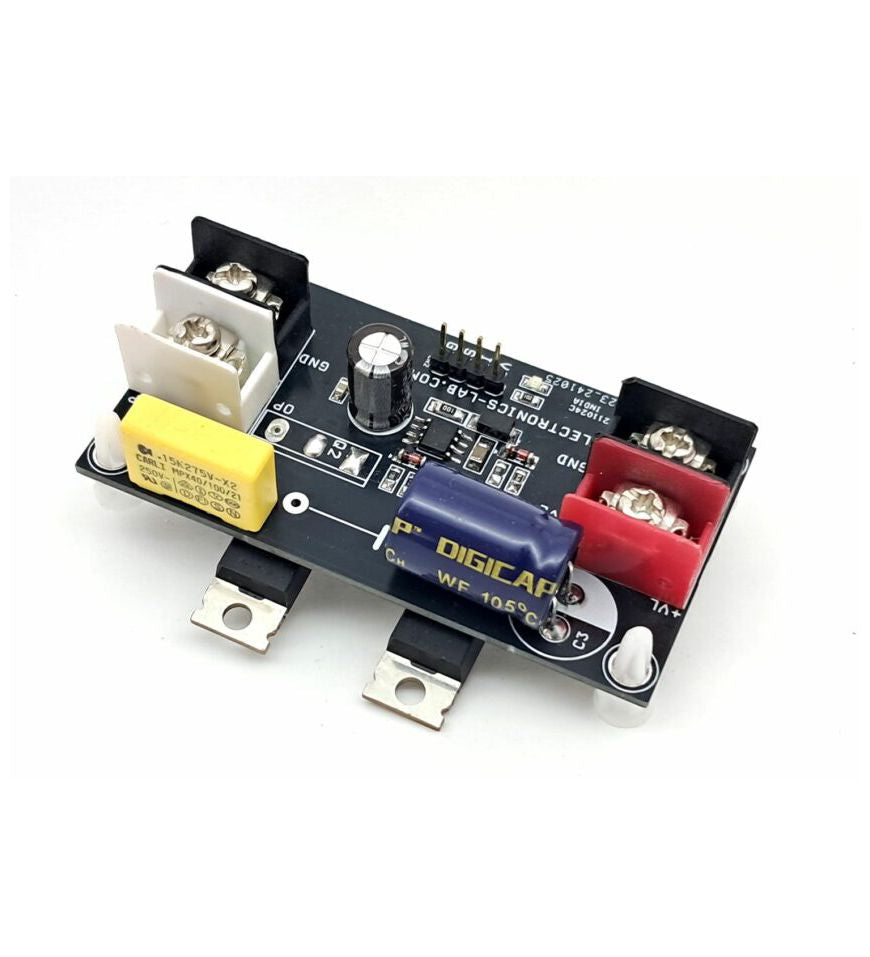

Half-Bridge Driver Module – 48V/5A Load, LF2184
This Half-Bridge Driver Module is a low-voltage power management solution designed to drive a wide range of applications, including DC motors, DC-DC converters, and other inductive and resistive loads. The module is engineered to operate within a load supply voltage range of up to 48V DC and can handle a maximum load current of 5A, making it an ideal choice for various low-voltage power management applications. The design utilizes low-cost N-channel MOSFETs, specifically the IRFZ44, which provide a reliable and efficient switching performance. Barrier terminal blocks are employed for the load power input, while a header connector is used for the gate driver supply and input signal. The driver operates with a single PWM (Pulse Width Modulation) signal, and the SD (Shutdown) pin is enabled by default with an internal pull-up resistor. To disable the output, simply connect the SD pin to the ground. The board supports the use of either TO220 or TO247 MOSFETs, with two IRFZ44PBF MOSFETs (60V, 50A, 0.028 ohm) used in this particular design. This flexibility allows for easy adaptation to different application requirements.
Key Features
- Load supply: up to 48V DC (VL)
- Load current: up to 5A
- Gate Driver Power 12-15V (VCC)
- Low-cost N-channel MOSFETs (IRFZ44)
- Barrier Terminal blocks for load power input
- Header connector for gate driver supply and input signal
- Single PWM signal operation
- SD pin with internal pull-up resistor for default enable
- On Board Power LED
- UVLO off Positive Going Threshold 9V
- Supports TO220 or TO247 MOSFETs
- 4 x 4 mm PCB Mounting Holes
- PCB Dimensions 79.85 x 40.0 1mm
This module is suitable for use in a variety of applications, including:
- Motor control systems
- Power management systems
- DC-DC converters
- Low-voltage power supplies
- Industrial automation systems
Share
This Half-Bridge Driver Module is a low-voltage power management solution designed to drive a wide range of applications, including DC motors, DC-DC converters, and other inductive and resistive loads. The module is engineered to operate within a load supply voltage range of up to 48V DC and can handle a maximum load current of 5A, making it an ideal choice for various low-voltage power management applications. The design utilizes low-cost N-channel MOSFETs, specifically the IRFZ44, which provide a reliable and efficient switching performance. Barrier terminal blocks are employed for the load power input, while a header connector is used for the gate driver supply and input signal. The driver operates with a single PWM (Pulse Width Modulation) signal, and the SD (Shutdown) pin is enabled by default with an internal pull-up resistor. To disable the output, simply connect the SD pin to the ground. The board supports the use of either TO220 or TO247 MOSFETs, with two IRFZ44PBF MOSFETs (60V, 50A, 0.028 ohm) used in this particular design. This flexibility allows for easy adaptation to different application requirements.
Key Features
- Load supply: up to 48V DC (VL)
- Load current: up to 5A
- Gate Driver Power 12-15V (VCC)
- Low-cost N-channel MOSFETs (IRFZ44)
- Barrier Terminal blocks for load power input
- Header connector for gate driver supply and input signal
- Single PWM signal operation
- SD pin with internal pull-up resistor for default enable
- On Board Power LED
- UVLO off Positive Going Threshold 9V
- Supports TO220 or TO247 MOSFETs
- 4 x 4 mm PCB Mounting Holes
- PCB Dimensions 79.85 x 40.0 1mm
This module is suitable for use in a variety of applications, including:
- Motor control systems
- Power management systems
- DC-DC converters
- Low-voltage power supplies
- Industrial automation systems
