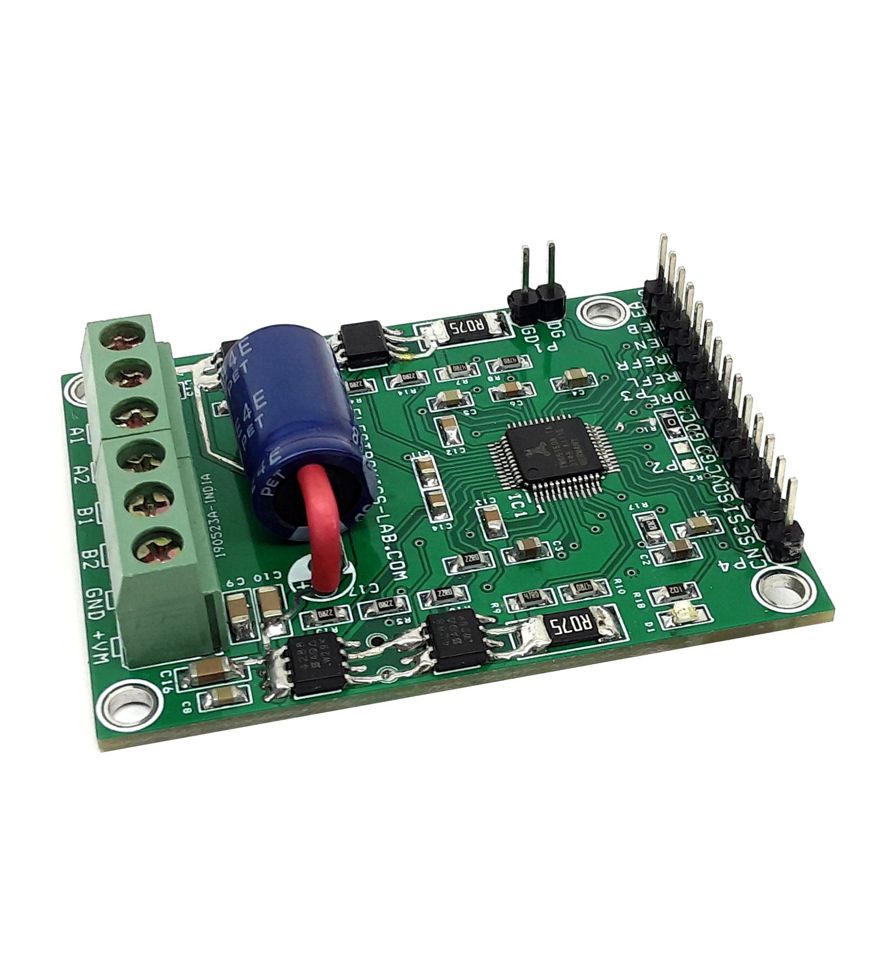

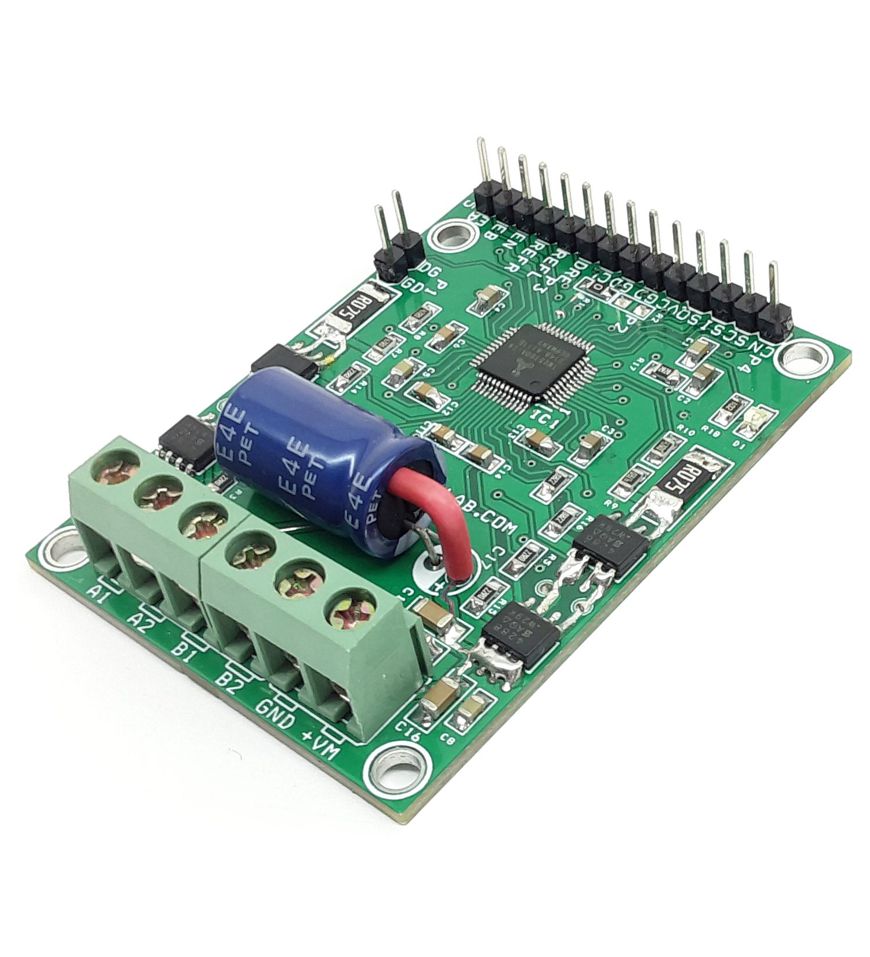

High Power Bipolar Stepper Motor Driver with SPI Interface
This is a compact high-power stepper motor driver built for bipolar stepper motors. The driver can be controlled using a serial communication interface (SPI).
This is a compact high-power stepper motor driver built for bipolar stepper motors. The driver can be controlled using a serial communication interface (SPI). It combines a flexible ramp generator for automatic target positioning with the industry’s most advanced stepper motor driver. Using external transistors, the driver ensures absolutely noiseless operation combined with maximum efficiency and the best motor torque. High integration, high energy efficiency, and a small form factor enable miniaturized. The complete solution reduces the learning curve to a minimum while giving the best performance in class. The project has the option to interface an external incremental encoder for easy control of position and step-loss operations.
Features
- Power Supply Motor 9 to 36V DC
- 2.8A Continues Current (3.1A Peak)
- Configuration & Control via SPI
- S/D mode selectable via solder option
- Header Connectors for All signal Inputs
- Screw Terminal Connectors for Power Supply and Easy Motor Connections
- Low Ohmic MOSFETS for High Efficiency and Low Heat
- On Board Power LED
- Encoder Interface and 2xRef-Switch Input
- Highest Resolution 256 Microsteps Per Full Step
- Step/Dir Interface with microstep interpolation MicroPlyer™
- Motion Controller with SixPoint™ramp
- StealthChop2™ for quiet operation and smooth motion
- Resonance Dampening for mid-range resonances
- SpreadCycle™ highly dynamic motor control chopper
- DcStep™ load-dependent speed control
- StallGuard2™ high precision Sensorless motor load detection
- CoolStep™ current control for energy savings up to 75%
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- PCB Dimensions 57.79 x 43.18mm
- 4 x 3MM Mounting Holes
Share
This is a compact high-power stepper motor driver built for bipolar stepper motors. The driver can be controlled using a serial communication interface (SPI).
This is a compact high-power stepper motor driver built for bipolar stepper motors. The driver can be controlled using a serial communication interface (SPI). It combines a flexible ramp generator for automatic target positioning with the industry’s most advanced stepper motor driver. Using external transistors, the driver ensures absolutely noiseless operation combined with maximum efficiency and the best motor torque. High integration, high energy efficiency, and a small form factor enable miniaturized. The complete solution reduces the learning curve to a minimum while giving the best performance in class. The project has the option to interface an external incremental encoder for easy control of position and step-loss operations.
Features
- Power Supply Motor 9 to 36V DC
- 2.8A Continues Current (3.1A Peak)
- Configuration & Control via SPI
- S/D mode selectable via solder option
- Header Connectors for All signal Inputs
- Screw Terminal Connectors for Power Supply and Easy Motor Connections
- Low Ohmic MOSFETS for High Efficiency and Low Heat
- On Board Power LED
- Encoder Interface and 2xRef-Switch Input
- Highest Resolution 256 Microsteps Per Full Step
- Step/Dir Interface with microstep interpolation MicroPlyer™
- Motion Controller with SixPoint™ramp
- StealthChop2™ for quiet operation and smooth motion
- Resonance Dampening for mid-range resonances
- SpreadCycle™ highly dynamic motor control chopper
- DcStep™ load-dependent speed control
- StallGuard2™ high precision Sensorless motor load detection
- CoolStep™ current control for energy savings up to 75%
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- PCB Dimensions 57.79 x 43.18mm
- 4 x 3MM Mounting Holes
