Joystick Stepper Motor Controller

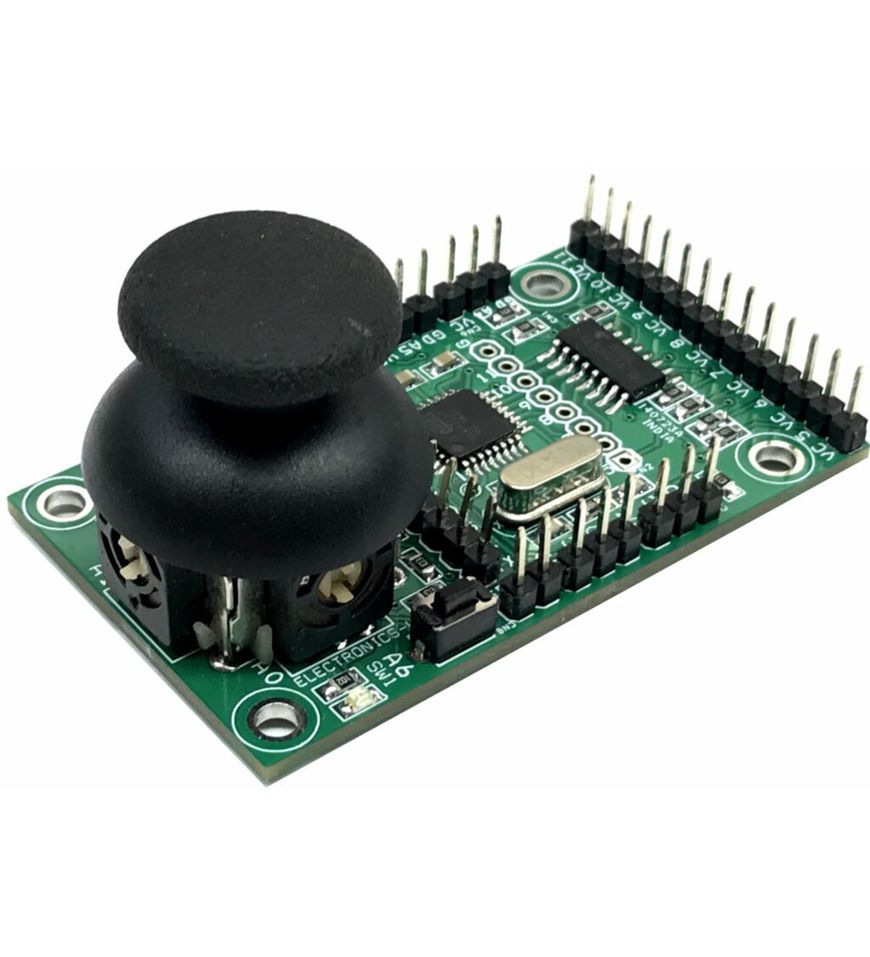

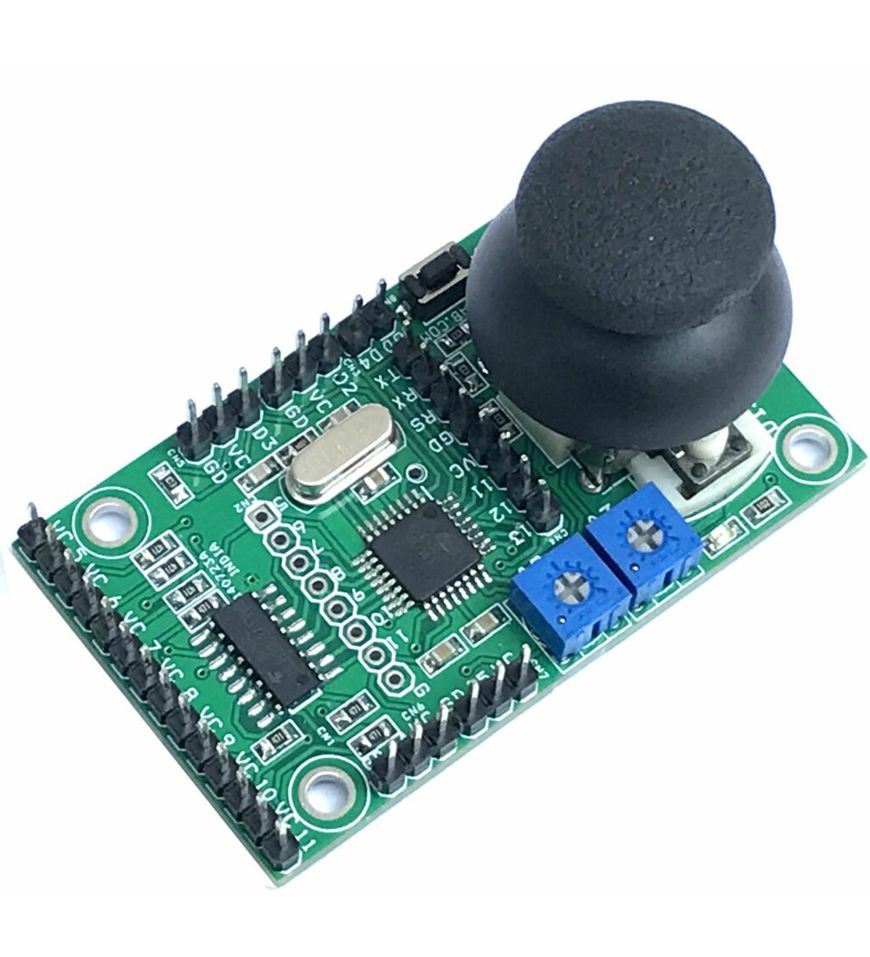

This is a pulse generator for a stepper motor driver using a joystick. It is a board that contains an Arduino-compatible microcontroller and circuitry for controlling up to 2-channel (2-axis) stepper motors. The board has multiple options to develop stepper motor-related control systems, from a 2-axis analog joystick to a trimmer potentiometer to a 7-channel open collector TTL output to interface stepper drivers with optocoupler inputs, etc.

Key Features of the Hardware

• ATMEGA328 Arduino Compatible Microcontroller
• Connector for Arduino Programming/Bootloader
• 2 x Axis (2 Channel Joystick) Cab used to drive stepper Forward, Reverse
• 2 x Trimmer Potentiometer Can be used to set acceleration/deacceleration or other functions.
• One Tactile Switch
• Connector for 7 Outputs Open Collector Type
• Optional Connector for Direct 7 Outputs
• Connector CN3 and CN5 for Limits switch or other function (with Pull-ups)
• Connector CN6 and CN7 for Analog Input
• Connector CN8 I/O
• One Tactile Switch Internal Joystick
• ULN2003 Chip Open connector to connect with stepper drivers
• Function LED Connected to D12
• Power LED
• Breakout Connectors with Pullups to Connect Limit Switches

Features

• Power Supply 5V_DC
• Two Stepper Motor Controlled Using a Joystick
• All Step and Direction Signals Open Collector Type and TTL Level (7 Outputs)
• On Board Optional Connector CN2 for Direct Output from Arduino
• Various hardware options are available for the development of many applications for stepper motors
• 4 x 3 mm Mounting Holes
• PCB Dimension 61.28 x 36.20 mm

Application

• Stepper Motor Based Linear/Rotary Actuator
• Turn Tables
• Camera Sliders
• Camera Pan Tilt Head
• Robotics Arms
• Robotics
• Automation
• Animatronics
