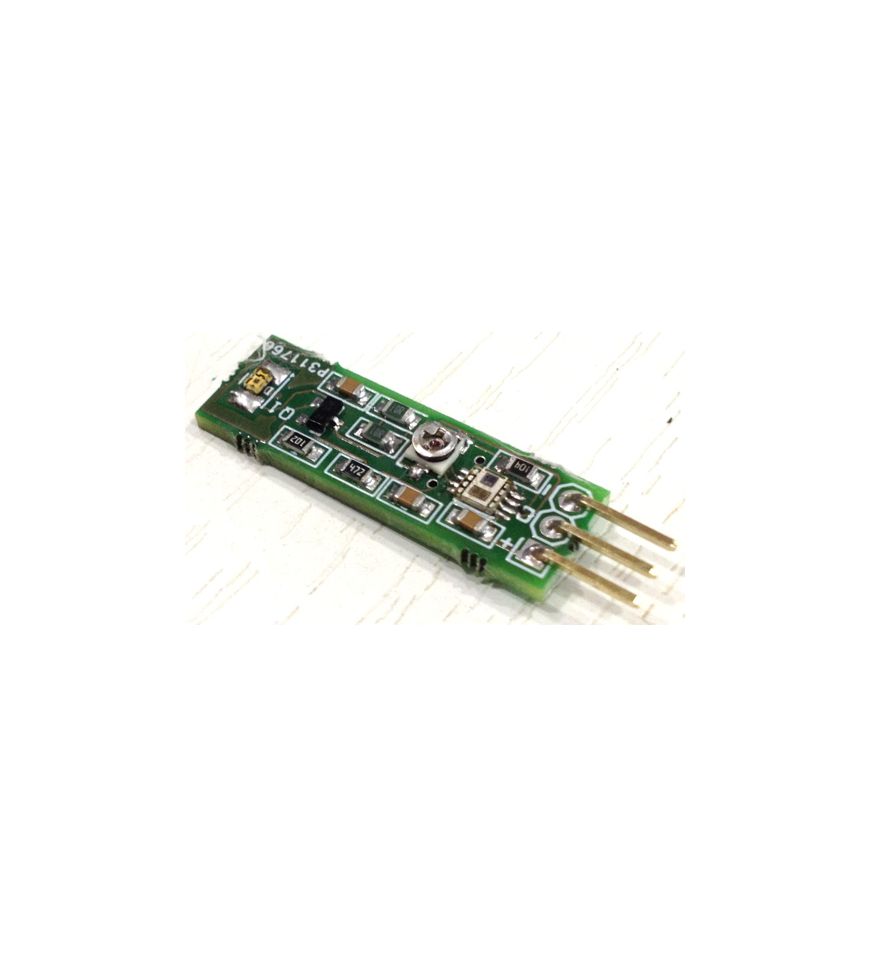

Reflectance based Proximity Sensor using Si1102
This reflective sensor module is a high-performance 0-5 cm active proximity detector. The sensor can provide a range up to 50cm with higher current infra-red LED and current limit resistor R2, R4 used across IR LED.
Features
- Supply 5V DC
- Output High TTL Signal When Object Detect
- Infra-Red 100mA LED 0805 Package
- Output normally high; goes low when proximity is detected.
- Sampling Strobe Rate 30Hz (Can be alter using R5, Refer datasheet of IC Si1102)
- Detection Range 5cm (50cm Range Possible with Higher Current IR LED Proper Optics)
Share
This reflective sensor module is a high-performance 0-5 cm active proximity detector. The sensor can provide a range up to 50cm with higher current infra-red LED and current limit resistor R2, R4 used across IR LED.
Features
- Supply 5V DC
- Output High TTL Signal When Object Detect
- Infra-Red 100mA LED 0805 Package
- Output normally high; goes low when proximity is detected.
- Sampling Strobe Rate 30Hz (Can be alter using R5, Refer datasheet of IC Si1102)
- Detection Range 5cm (50cm Range Possible with Higher Current IR LED Proper Optics)
