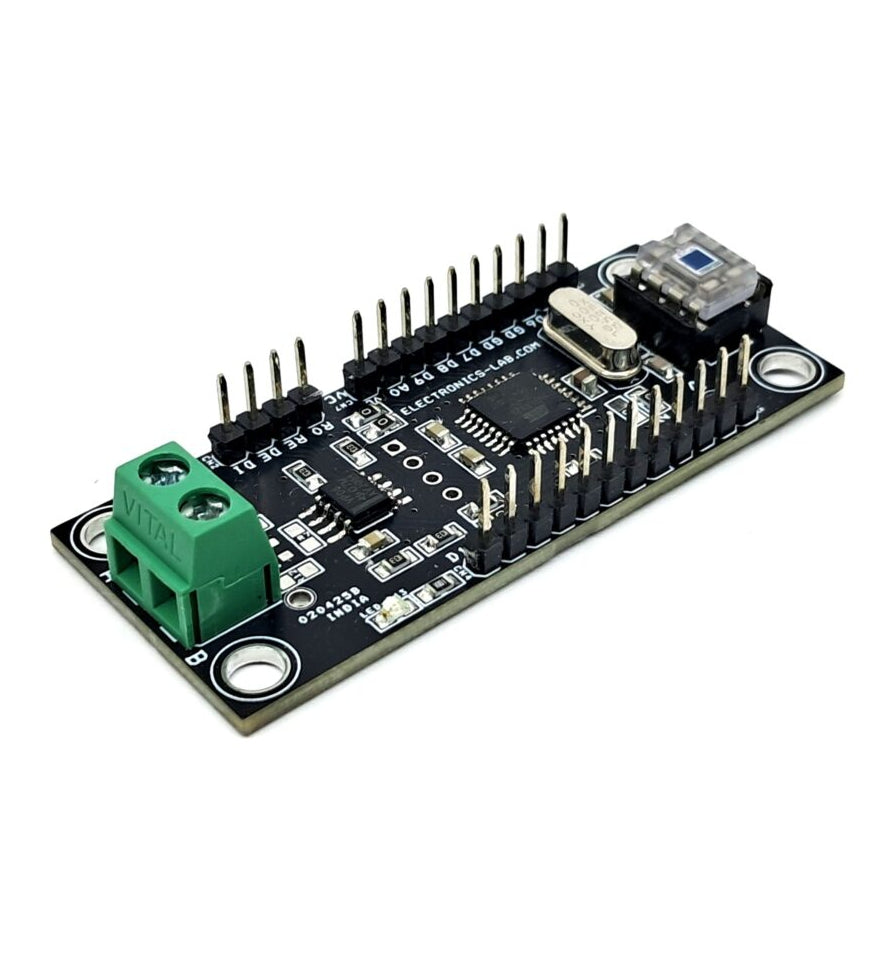

RS485 Light Sensor Interface Board
This Arduino-compatible hardware is primarily designed for RS485-based applications. It features an ATmega328 microcontroller, RS485 SN65HVD485E Half-Duplex RS-485 Transceiver chip, OPT101 light sensor, multiple I/O lines, and a provision for mounting a 0.96-inch OLED display.
A simple and practical example application is a light sensor system communicating over RS485. Screw terminals are provided for easy connection of the RS485 A and B twisted pair cables, while all other I/O lines are accessible through header connectors.
This board is ideal for developing light-sensing and other sensor-based RS485 communication projects.
SN65HVD485E Half-Duplex RS-485 Transceiver vs Arduino Pins
- RO= Arduino D10
- RE = Arduino D2
- DE = Arduino D3
- DI = Arduino D11
Features
- Supply 5V DC
- OPT101 Light Sensor on Board
- RS485 Communication (Half-Duplex)
- Screw Terminal for RS485 Connection
- RS485 Bus-pin ESD protection up to 15 kV
- RS485 Bus-open-failsafe receiver
- Glitch-free power-up and power-down bus inputs and outputs
- Multiple I/O Lines Available for Interface
- On Board Power LED
- On Borad Function LED Connected to D13
- On Board Optional 0.96 OLED Display
- On Board Optional RF433 MHz RF Module
- 4 x 4 mm Mounting Holes
- PCB Dimensions 62.55 x 26.51 mm
Share
This Arduino-compatible hardware is primarily designed for RS485-based applications. It features an ATmega328 microcontroller, RS485 SN65HVD485E Half-Duplex RS-485 Transceiver chip, OPT101 light sensor, multiple I/O lines, and a provision for mounting a 0.96-inch OLED display.
A simple and practical example application is a light sensor system communicating over RS485. Screw terminals are provided for easy connection of the RS485 A and B twisted pair cables, while all other I/O lines are accessible through header connectors.
This board is ideal for developing light-sensing and other sensor-based RS485 communication projects.
SN65HVD485E Half-Duplex RS-485 Transceiver vs Arduino Pins
- RO= Arduino D10
- RE = Arduino D2
- DE = Arduino D3
- DI = Arduino D11
Features
- Supply 5V DC
- OPT101 Light Sensor on Board
- RS485 Communication (Half-Duplex)
- Screw Terminal for RS485 Connection
- RS485 Bus-pin ESD protection up to 15 kV
- RS485 Bus-open-failsafe receiver
- Glitch-free power-up and power-down bus inputs and outputs
- Multiple I/O Lines Available for Interface
- On Board Power LED
- On Borad Function LED Connected to D13
- On Board Optional 0.96 OLED Display
- On Board Optional RF433 MHz RF Module
- 4 x 4 mm Mounting Holes
- PCB Dimensions 62.55 x 26.51 mm
