Synchronous Boost Converter 12V Input to 24V Output @ 2A

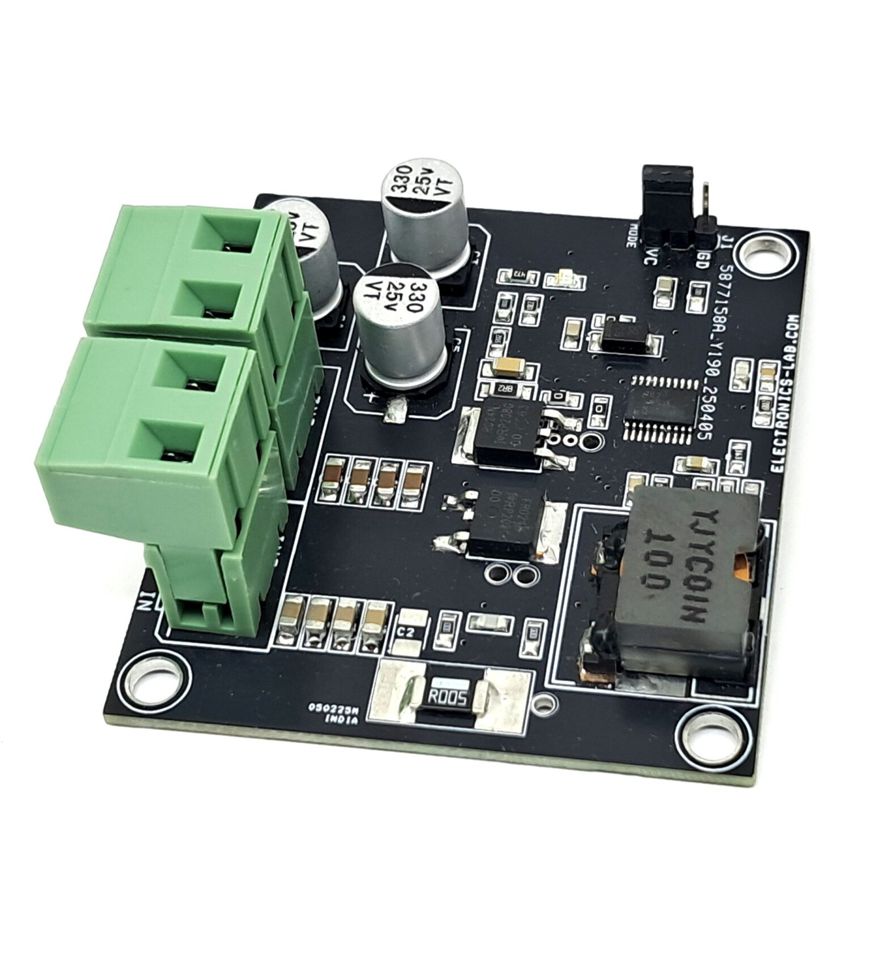

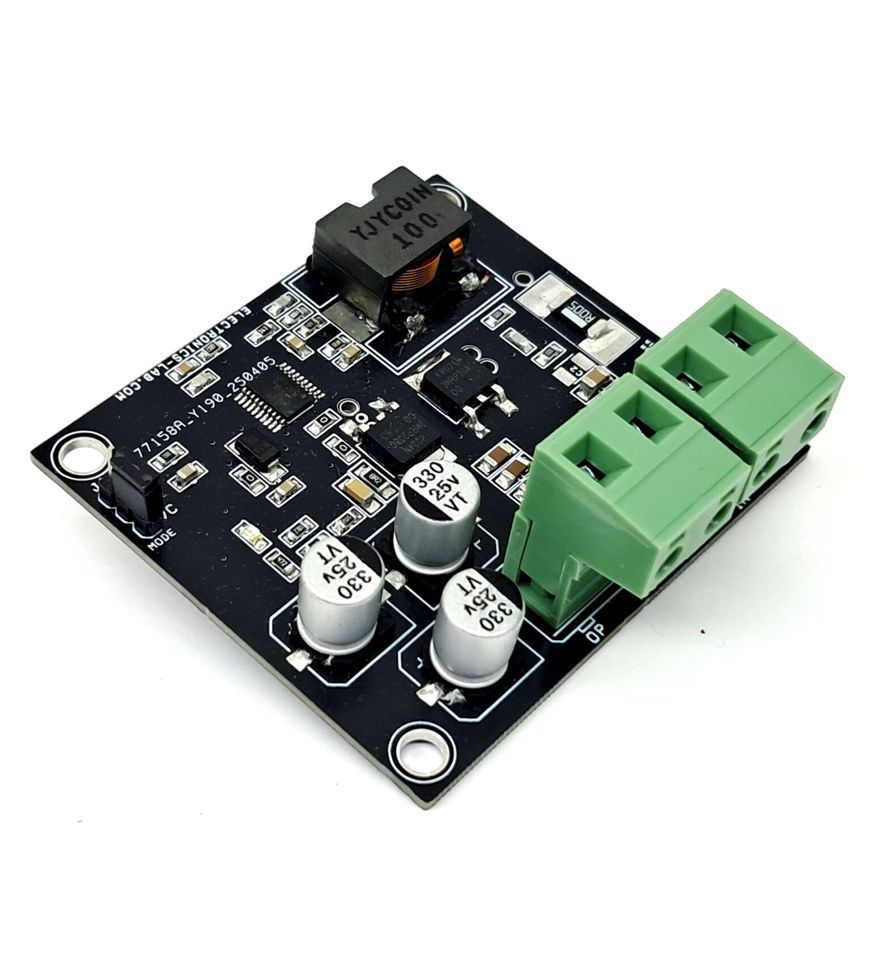

This project is a synchronous boost converter based on the LM5122 IC. It converts a 12V input to a 24V output capable of delivering up to 2A. It features high-current connectors and a power indicator LED.
Features
- Input Supply 12V DC
- Output 24V DC
- Load Current up to 2A
- Switching Frequency 250Khz
- Cycle-by-Cycle Current Limit
- Programmable Line UVLO
- Soft Start
- Thermal Shutdown Protection
- 4 x 4MM Mounting Holes
- PCB Dimensions 62.23 x 56.20 mm
Share
This project is a synchronous boost converter based on the LM5122 IC. It converts a 12V input to a 24V output capable of delivering up to 2A. It features high-current connectors and a power indicator LED.
Features
- Input Supply 12V DC
- Output 24V DC
- Load Current up to 2A
- Switching Frequency 250Khz
- Cycle-by-Cycle Current Limit
- Programmable Line UVLO
- Soft Start
- Thermal Shutdown Protection
- 4 x 4MM Mounting Holes
- PCB Dimensions 62.23 x 56.20 mm
