Over Speed Sensor – Over Speed Alarm using Magnetic Pickup Sensor

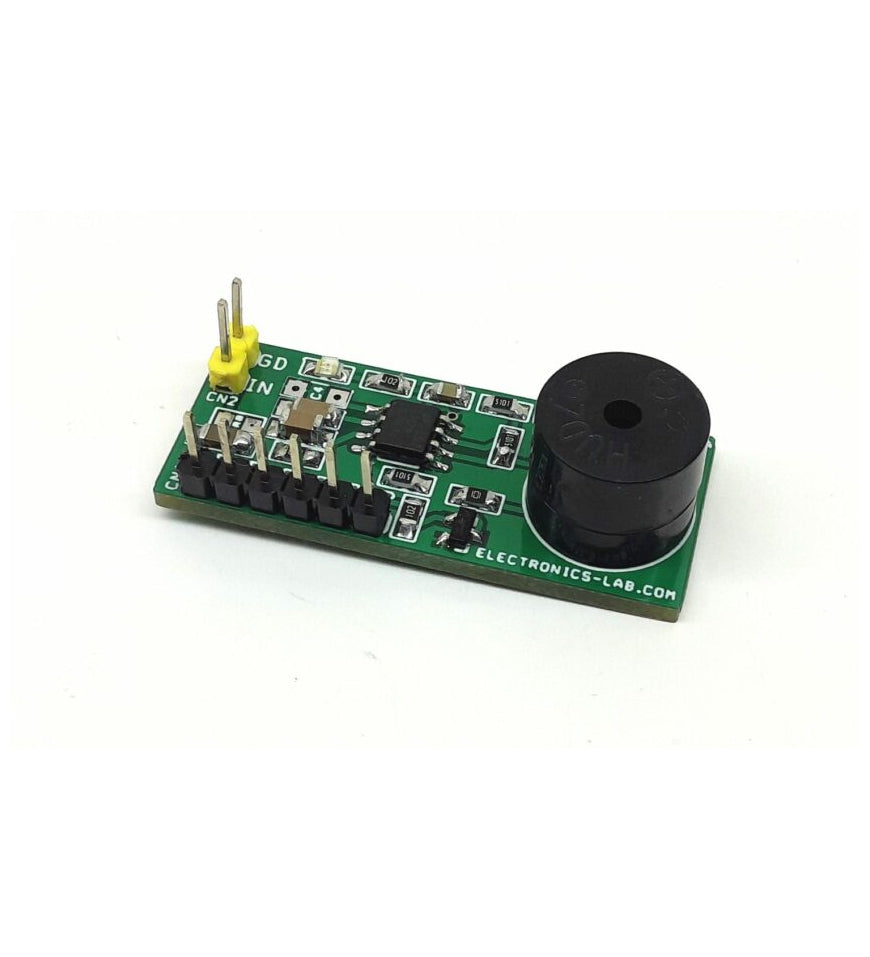

This is an over-speed sensor module, that provides an audible warning and signals output when the speed of a machine is above a set point. The module can be used in applications such as Engines, Machines, Sports machines, and Fitness Equipment. The speed of the machine or engine can be detected using magnetic pickup sensors. The project can be used in many applications where an over-speed monitor is important. The board is based on the LM2907 chip that works as a frequency to voltage converter, interfacing a magnetic pickup as shown in the figure below. A typical magnetic pickup for automotive applications will provide a thousand pulses per mile so that at 60 mph the incoming frequency will be 16.6Hz. When the reference level on the comparator is set by two equal resistors R2 and R6 then the desired value of C5 and R4 can be determined from the following simple relationship:
The buzzer is energized when Frequency ≥ (1/(2XR4C5))
From the RC selection chart, we can choose suitable values for R5 and C5. With the current circuit, the frequency is set to 500Hz approx. The frequency trigger point can be changed as per user requirement using above equation. The module supports any sensor voltage level from 20mV to 28V.
Connections: CN1
- Pin 1 Output Normally Low, Goes High When Over Speed Sense,
- Pin 2, Pin5, Pin6 = GND
- Pin 3 and Pin 4 = VCC Supply Input
Connections CN2: Magnetic Pick Up Sensor
Features
- Supply 12 to 15V DC @ 20mA
- Optimized for Magnetic Pickup Sensor
- Other Optical Sensor, Mechanical Sensor, and Tachometer sensors can be used
- Inputs Voltage Level 20mV to 28V
- Buzzer Operates when the Input frequency is above 500Hz
- Provide High Output When Speed is below Set Point
- Header Connector for Supply Input and Output
- 2 Pin Header for Sensor
- D1 Power LED
- PCB Dimensions 38.42 x 16.19mm
Applications
- Engines
- Tachometer Under/Over Speed
- Fitness Equipment
- Sports Machines
- Machine Automation
- AC/DC Motor Speed Monitor
Share
This is an over-speed sensor module, that provides an audible warning and signals output when the speed of a machine is above a set point. The module can be used in applications such as Engines, Machines, Sports machines, and Fitness Equipment. The speed of the machine or engine can be detected using magnetic pickup sensors. The project can be used in many applications where an over-speed monitor is important. The board is based on the LM2907 chip that works as a frequency to voltage converter, interfacing a magnetic pickup as shown in the figure below. A typical magnetic pickup for automotive applications will provide a thousand pulses per mile so that at 60 mph the incoming frequency will be 16.6Hz. When the reference level on the comparator is set by two equal resistors R2 and R6 then the desired value of C5 and R4 can be determined from the following simple relationship:
The buzzer is energized when Frequency ≥ (1/(2XR4C5))
From the RC selection chart, we can choose suitable values for R5 and C5. With the current circuit, the frequency is set to 500Hz approx. The frequency trigger point can be changed as per user requirement using above equation. The module supports any sensor voltage level from 20mV to 28V.
Connections: CN1
- Pin 1 Output Normally Low, Goes High When Over Speed Sense,
- Pin 2, Pin5, Pin6 = GND
- Pin 3 and Pin 4 = VCC Supply Input
Connections CN2: Magnetic Pick Up Sensor
Features
- Supply 12 to 15V DC @ 20mA
- Optimized for Magnetic Pickup Sensor
- Other Optical Sensor, Mechanical Sensor, and Tachometer sensors can be used
- Inputs Voltage Level 20mV to 28V
- Buzzer Operates when the Input frequency is above 500Hz
- Provide High Output When Speed is below Set Point
- Header Connector for Supply Input and Output
- 2 Pin Header for Sensor
- D1 Power LED
- PCB Dimensions 38.42 x 16.19mm
Applications
- Engines
- Tachometer Under/Over Speed
- Fitness Equipment
- Sports Machines
- Machine Automation
- AC/DC Motor Speed Monitor
