Simple SMPS, 85-265VAC Input with Output 12VDC @ 750mA

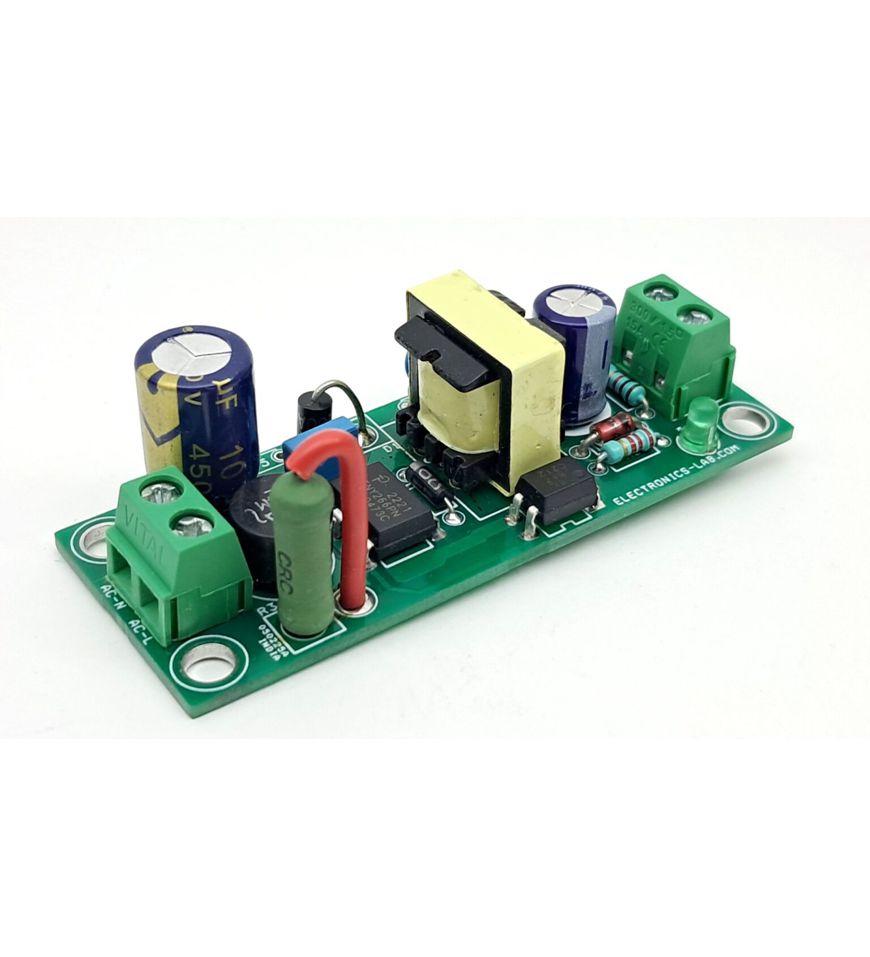

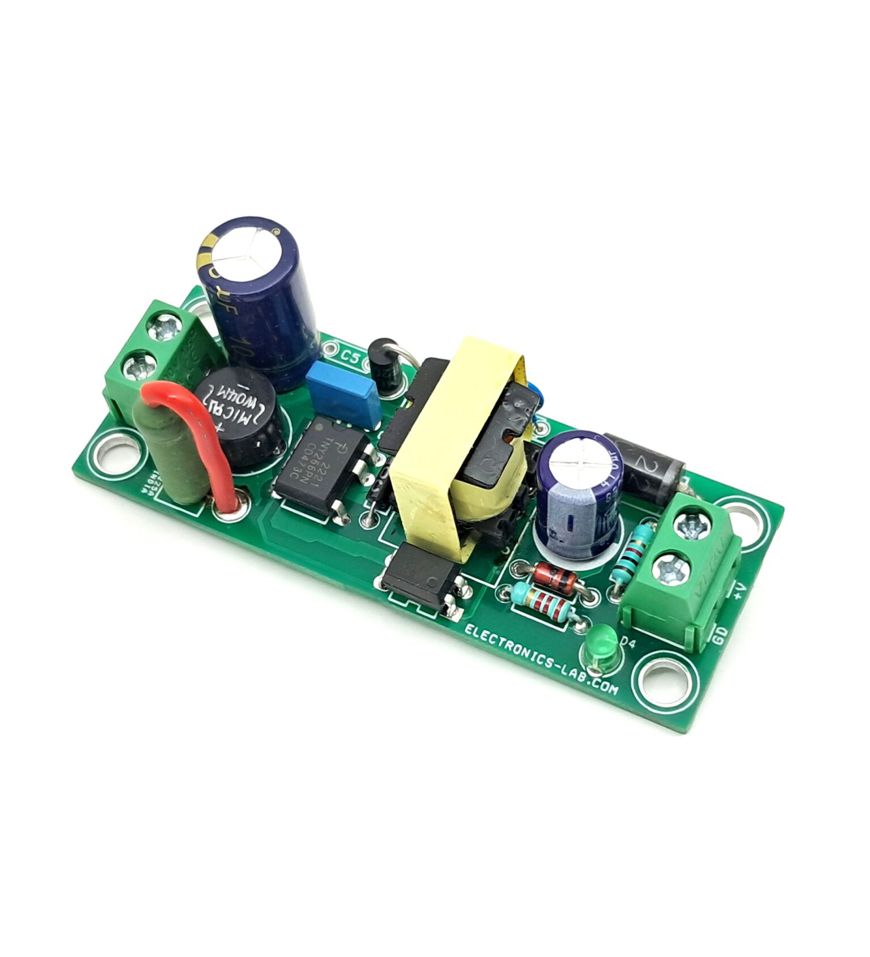

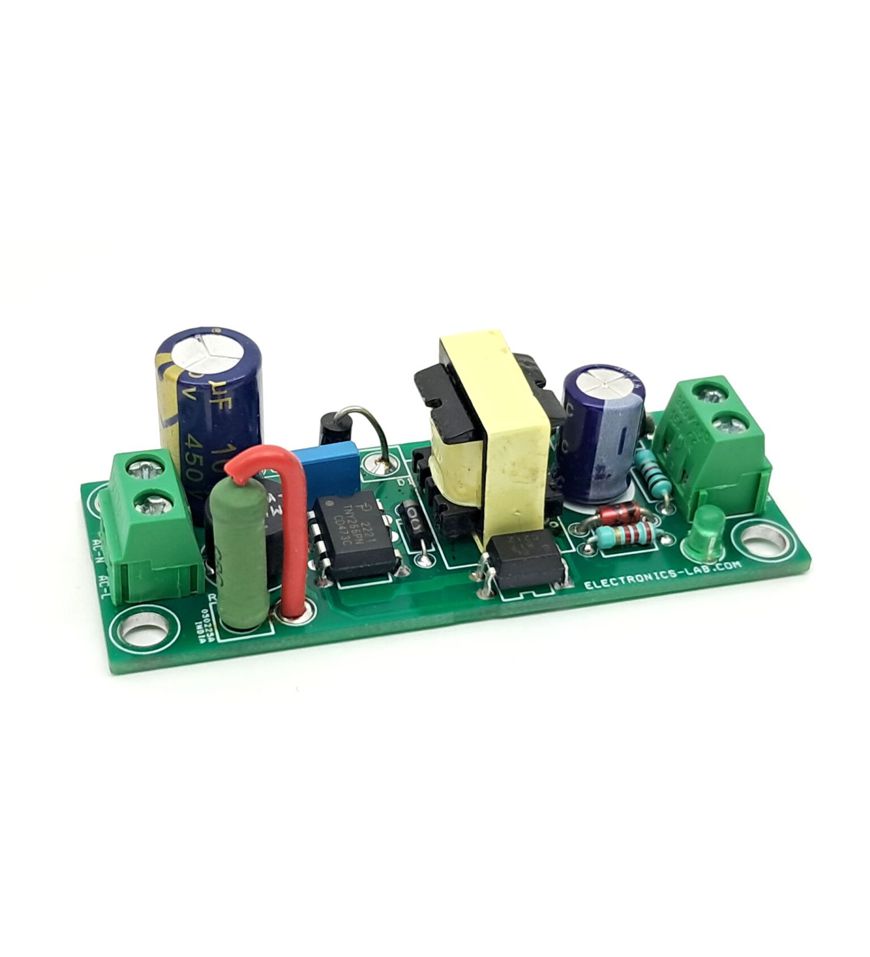

This is a compact Switch-Mode Power Supply (SMPS) using the TNY266 chip for cost-effective solutions like power adapters and LED drivers. It includes a rectifier, TNY266 switch, and PC817 optocoupler feedback. It requires no auxiliary power.
Features
- Power Input 85-265V AC
- Output 12V, 750mA (Output +/-5%)
- Screw Terminals for AC Input and DC Output
- Operating Switching Frequency 132Khz
- 4 x 4 mm Mounting Holes
- PCB Dimensions 69.06 x 25.88 mm
Share
This is a compact Switch-Mode Power Supply (SMPS) using the TNY266 chip for cost-effective solutions like power adapters and LED drivers. It includes a rectifier, TNY266 switch, and PC817 optocoupler feedback. It requires no auxiliary power.
Features
- Power Input 85-265V AC
- Output 12V, 750mA (Output +/-5%)
- Screw Terminals for AC Input and DC Output
- Operating Switching Frequency 132Khz
- 4 x 4 mm Mounting Holes
- PCB Dimensions 69.06 x 25.88 mm
